Product Summary

The TL074CN is a low noise, JFET input operational amplifier. Each internally compensated operational amplifier has well matched high voltage JFET input device for low input offset voltage. The BIFET technology provides wide bandwidths and fast slew rates with low input bias currents, input offset currents, and supply currents. Moreover, the devices exhibit low noise and low harmonic distortion, making them ideal for use in high fidelity audio amplifier applications.

Parametrics

TL074CN absolute maximum ratings: (1)supply voltage: 18V; (2)differential input voltage: 30V; (3)input voltage range: 15V; (4)output short circuit duration: continuous; (5)power dissipation: 680mW; (6)operating ambient temperature range: 0 to 70℃; (7)storage temeprature range: -65 to 150℃.

Features

TL074CN features: (1)Low Harmonic Distortion: 0.01% Typ; (2)Low Input Bias and Offset Currents; (3)High Input Impedance: 1012 W Typ; (4)High Slew Rate: 13 V/ms Typ; (5)Wide Gain Bandwidth: 4.0 MHz Typ; (6)Low Supply Current: 1.4 mA per Amp.

Diagrams

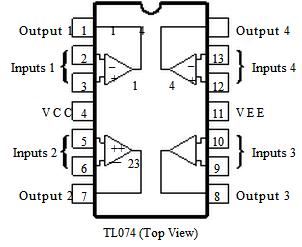

TL074CN diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TL074CNE4
TL074CNE4
Texas Instruments
Operational Amplifiers - Op Amps Quad Low-Noise JFET-Input
Data Sheet
0-1: $0.41
1-25: $0.31
25-100: $0.28
100-250: $0.24
TL074CNSR
TL074CNSR
Texas Instruments
Operational Amplifiers - Op Amps Quad Low-Noise JFET-Input
Data Sheet
0-1: $0.39
1-25: $0.29
25-100: $0.24
100-250: $0.21
TL074CNSRG4
TL074CNSRG4
Texas Instruments
Operational Amplifiers - Op Amps Quad Lo-Noise JFET- Inp Gen-Purp Op Amp
Data Sheet
0-1: $0.32
1-25: $0.25
25-100: $0.21
100-250: $0.19
TL074CNSRE4
TL074CNSRE4
Texas Instruments
Operational Amplifiers - Op Amps Quad Low-Noise JFET-Input
Data Sheet
0-1: $0.32
1-25: $0.25
25-100: $0.21
100-250: $0.19
TL074CN
TL074CN
STMicroelectronics
Operational Amplifiers - Op Amps Quad Low Noise JFET
Data Sheet
0-1: $0.28
1-10: $0.23
10-100: $0.17
100-250: $0.16
