LT1076CQ

LT1076CQ, Step-Down Switching Regulator, TO-263, 45V, 5A, Linear Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.10~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.10~1.50

PartNumber:: LT1076CQ

Brand:: Linear Technology - Linear | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Gardenias's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-18

From Other Seller

Part Number:LT1076CQ
US $1.10 - 1.50
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

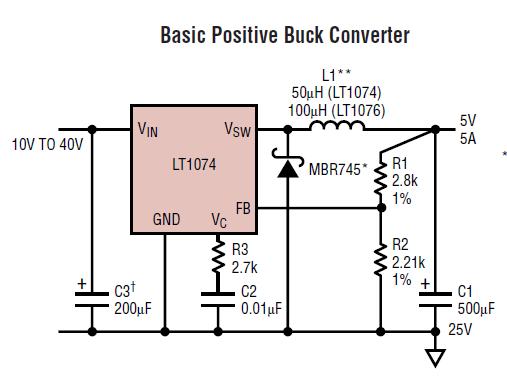

The LT1076CQ is a 5A monolithic bipolar switching regulator which requires only a few external parts for normal operation. The power switch, all oscillator and control circuitry, and all current limit components, are included on the chip. The topology is a classic positive “buck” configuration but several design innovations allow this device to be used as a positive-to-negative converter, a negative boost converter, and as a flyback converter. The applications of the LT1076CQ include Buck Converter with Output Voltage Range of 2.5V to 50V, Tapped-Inductor Buck Converter with 10A Output at 5V, Positive-to-Negative Converter, Negative Boost Converter, Multiple Output Buck Converter.

Parametrics

LT1076CQ absolute maximum ratings: (1)Input Voltage, LT1074/ LT1076: 45V; LT1074HV/LT1076HV: 64V; (2)Switch Voltage with Respect to Input Voltage, LT1074/ LT1076: 64V; LT1074HV/LT1076HV: 75V; (3)Switch Voltage with Respect to Ground Pin (VSW Negative); (4)LT1074/LT1076: 35V; (5)LT1074HV/LT1076HV: 45V; (6)Feedback Pin Voltage: -2V, +10V; (7)Shutdown Pin Voltage (Not to Exceed VIN): 40V.

Features

LT1076CQ features: (1)5A Onboard Switch (LT1074); (2)100kHz Switching Frequency; (3)Greatly Improved Dynamic Behavior; (4)Available in Low Cost 5 and 7-Lead Packages; (5)Only 8.5mA Quiescent Current; (6)Programmable Current Limit; (7)Operates Up to 60V Input; (8)Micropower Shutdown Mode.
