Product Summary

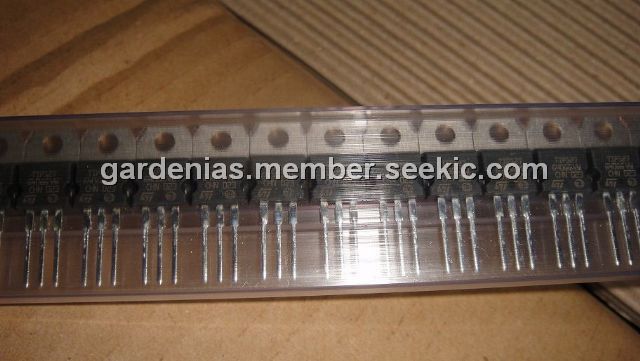

The TIP127 is a silicon Epitaxial-Base PNP power transistor in monolithic Darlington configuration mounted in Jedec TO-220 plastic package. It is intented for use in power linear and switching applications.

Parametrics

Absolute maximum ratings: (1)VCBO, Collector-Base Voltage (IE = 0): 100 V; (2)VCEO Collector-Emitter Voltage (IB = 0): 100 V; (3)VEBO Emitter-Base Voltage (IC = 0): 5 V; (4)IC Collector Current: 5 A; (5)ICM Collector Peak Current: 8 A; (6)IB Base Current: 0.1 A; (7)Ptot, Total Dissipation at Tcase ≤25 ℃: 65W; (8)Ptot, Total Dissipation at Tamb ≤25 ℃: 2 W; (9)Tstg, Storage Temperature: -65 to 150 ℃; (10)Tj, Max. Operating Junction Temperature: 150 ℃.

Features

Feature: STMicroelectronics preferred salestypes.

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20127171512383.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TIP127
TIP127

STMicroelectronics

Transistors Darlington PNP Power Darlington

Data Sheet

0-1: $0.30
1-10: $0.28
10-100: $0.25
100-250: $0.22
TIP127/MOR
TIP127/MOR

Other


Data Sheet

Negotiable
TIP127-BP
TIP127-BP

Micro Commercial Components (MCC)

Transistors Bipolar (BJT) PNP -100V -5A 40W

Data Sheet

0-1000: $0.40
TIP127F
TIP127F

Other


Data Sheet

Negotiable
TIP127FP
TIP127FP

STMicroelectronics

Transistors Darlington PNP Power Darlington Vceo/Vcbo 100 IC 5

Data Sheet

0-1: $0.31
1-10: $0.29
10-100: $0.28
100-250: $0.26
TIP127G
TIP127G

ON Semiconductor

Transistors Darlington 5A 100V Bipolar Power PNP

Data Sheet

0-1: $0.43
1-25: $0.38
25-100: $0.29
100-500: $0.25
TIP127-S
TIP127-S

Bourns

Transistors Darlington PNP DARLINGTON 100V 5A

Data Sheet

Negotiable
TIP127TU
TIP127TU

Fairchild Semiconductor

Transistors Darlington PNP Epitaxial Darl

Data Sheet

0-1: $0.39
1-25: $0.32
25-100: $0.23
100-250: $0.20
