Product Summary

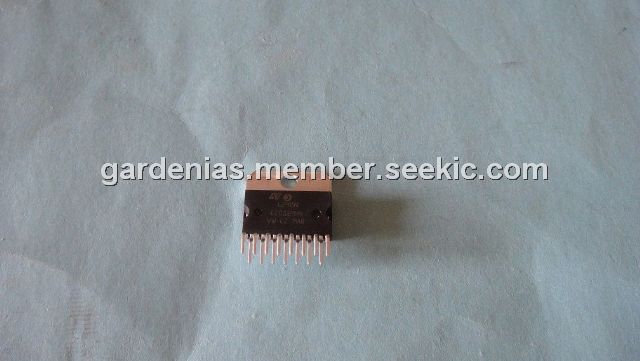

The L298N is an integrated monolithic circuit in a 15-lead Multiwatt and PowerSO20 packages. It is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Two enable inputs are provided to enable or disable the L298N independently of the input signals. The emitters of the lower transistors of each bridge are connected together and the corresponding external terminal can be used for the connection of an external sensing resistor. An additional supply input is provided so that the logic works at a lower voltage.

Parametrics

Absolute maximum ratings: (1)VS, Power Supply: 50 V; (2)VSS, Logic Supply Voltage: 7 V; (3)VI,Ven, Input and Enable Voltage: –0.3 to 7 V; (4)IO, Peak Output Current (each Channel): 3A at Non Repetitive (t = 100ms); 2.5 A at Repetitive (80% on –20% off; ton = 10ms); 2A at DC Operation; (5)Vsens, Sensing Voltage: –1 to 2.3 V; (6)Ptot, Total Power Dissipation (Tcase = 75℃): 25 W; (7)Top, Junction Operating Temperature: –25 to 130 ℃; (8)Tstg, Tj, Storage and Junction Temperature: –40 to 150 ℃.

Features

Features: (1)operating supply voltage up to 46 v; (2)total DC current up to 4 A; (3)low saturation voltage; (4)overtemperature protection; (5)logical "0" input voltage up to 1.5 v(high noise immunity).

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271715045769.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
L298N
L298N

STMicroelectronics

Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge

Data Sheet

0-1: $2.67
1-10: $2.25
10-100: $1.91
100-250: $1.72
