Product Summary

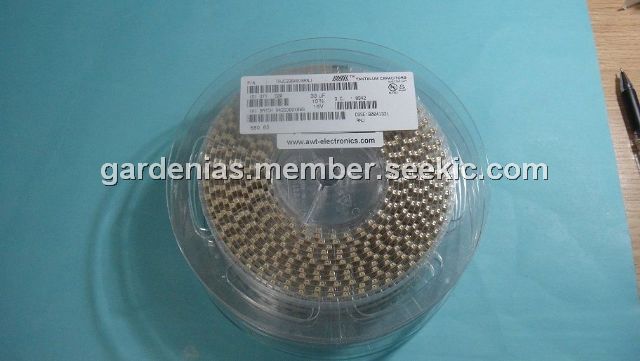

The TAJC336K016RNJ is a tantalum capacitor.

Parametrics

Technical specifications: (1)Technical Data: All technical data relate to an ambient temperature of +25℃; (2)Capacitance Range: 0.10 μF to 1000 μF; (3)Capacitance Tolerance: ±10%; ±20%; (4)Rated Voltage (VR) ≤+85℃: 2.5, 4, 6.3, 10, 16, 20, 25, 35, 50; (5)Category Voltage (VC) ≤+125℃: 1.7, 2.7, 4, 7, 10, 13, 17, 23, 33; (6)Surge Voltage (VS) ≤+85℃: 3.3, 5.2, 8, 13, 20, 26, 32, 46, 65; (7)Surge Voltage (VS) ≤+125℃: 2.2, 3.4, 5, 8, 13, 16, 20, 28, 40; (8)Temperature Range: -55℃ to +125℃; (9)Reliability: 1% per 1000 hours at 85℃, VR with 0.1Ω/V series impedance, 60% confidence level; (10)Termination Finished: Sn Plating (standard), Gold and SnPb Plating upon request.

Features

Features: (1)General purpose SMT chip tantalum series; (2)CV range: 0.10-2200μF / 2.5-50V; (3)9 case sizes in low profile option available.

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271715025210.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TAJC336K016RNJ
TAJC336K016RNJ

AVX

Tantalum Capacitors - Solid SMD 16volts 33uF 10%

Data Sheet

0-1: $0.38
1-100: $0.24
100-200: $0.20
200-500: $0.14
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TAJC105K050H
TAJC105K050H

AVX

Tantalum Capacitors - Solid SMD 50volts 1uF 10%

Data Sheet

Negotiable
TAJC105K050HNJ
TAJC105K050HNJ

AVX

Tantalum Capacitors - Solid SMD 50volts 1uF 10%

Data Sheet

0-1: $1.97
1-100: $1.37
100-500: $0.88
500-1000: $0.80
TAJC105K050PNJ
TAJC105K050PNJ

AVX

Tantalum Capacitors - Solid SMD 50volts 1.0uF 10%

Data Sheet

0-3000: $0.16
3000-6000: $0.15
6000-9000: $0.14
9000-12000: $0.14
TAJC105K050RNJ
TAJC105K050RNJ

AVX

Tantalum Capacitors - Solid SMD 50volts 1uF 10%

Data Sheet

0-1: $0.60
1-100: $0.33
100-200: $0.28
200-500: $0.19
TAJC105K050SNJ
TAJC105K050SNJ

AVX

Tantalum Capacitors - Solid SMD 50volts 1.0uF 10%

Data Sheet

0-3000: $0.16
3000-6000: $0.15
6000-12000: $0.14
12000-27000: $0.14
TAJC105M050H
TAJC105M050H

AVX

Tantalum Capacitors - Solid SMD 50volts 1uF 20%

Data Sheet

Negotiable
