Product Summary

The PCI6152-CC33PCG is a 33MHz, PCI-to-PCI Bridge Chip. It is a member of PLX FastLane PCI 6152 family, which is specially designed for applications that require high performance 32-bit PCI bus expansion. Add-in card designers can use the FastLane PCI 6152 to expand PCI connection capacity beyond the limitation of a single PCI device. The PCI6152-CC33PCG is ideal for: (1)PCI Latency Sensitive Systems; (2)PCI-Retry Penalty Sensitive Systems; (3)PCI Slave Access intensive bridging functions; (4)High Performance and low cost PCI-to-PCI bridging functions; (5)Low Power and PCI ClockRun support.

Features

PCI6152-CC33PCG features: (1)32-bit, 33MHz Synchronous operation; (2)5V signal tolerance; (3)160-pin PQFP; (4)Transparent Bridge Function; (5)PCI Bus Types; (6)Support for 4 Bus Masters.

Diagrams

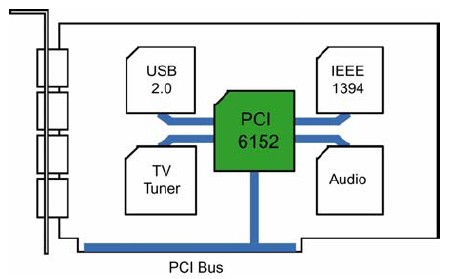

PCI6152-CC33PCG circuit diagram
