Product Summary

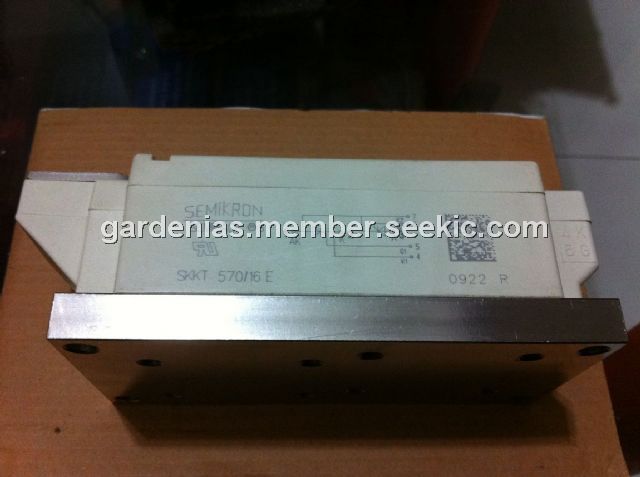

The SKKT570/16E is a Thyristor / Diode Module. The applications of the SKKT570/16E include DC motor control, AC motor soft starters, temperature control, professional light dimming.

Parametrics

SKKT570/16E absolute maximum ratings: (1)VRSM: 1700V; (2)VRRM, VDRM: 1600V; (3)ITAV: 570 (435) A; (4)VT: 1.44V; (5)IDD, IRD: 225 mA; (6)IH: 150/500 mA; (7)IL: 300/2000 mA; (8)Tvj: -40 to +135℃; (9)Tstg: -40 to +125℃.

Features

SKKT570/16E features: (1)heat transfer through aluminium nitride ceramic isolated metal baseplate; (2)precious metal pressure contacts for high reliability; (3)thyristor with amplifying gate; (4)UL recognized, file no. E 63 532.

Diagrams

SKKT570/16E block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SKKT570/16E
SKKT570/16E

Other


Data Sheet

Negotiable
