Product Summary

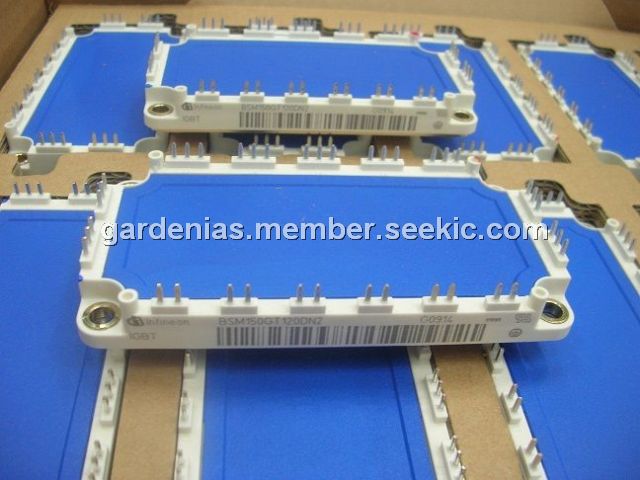

The BSM150GT120DN2 is a IGBT Power Module.
Parametrics
Absolute maximum ratings: (1)Collector-emitter voltage, VCE: 1200 V; (2)Collector-gate voltage, RGE = 20 kW, VCGR: 1200v; (3)Gate-emitter voltage, VGE: ± 20v; (4)DC collector current, TC = 25 ℃, IC: 200A; (5)DC collector current, TC = 80 ℃, IC: 150A; (6)Pulsed collector current, tp = 1 ms, TC = 25 ℃, ICpuls: 400A; (7)Pulsed collector current, tp = 1 ms, TC = 80 ℃, ICpuls: 300A; (8)Power dissipation per IGBT, TC = 25 ℃, Ptot: 1250W; (9)Chip temperature, Tj: + 150 ℃; (10)Storage temperature, Tstg: -40 to + 125℃; (11)Thermal resistance, chip case, RthJC: ≤0.12 K/W; (12)Diode thermal resistance, chip case, RthJCD: ≤0.28K/W; (13)Insulation test voltage, t = 1min., Vis: 2500 Vac; (14)Creepage distance: 16 mm; (15)Clearance: 11mm; (16)DIN humidity category, DIN 40 040: F sec; (17)IEC climatic category, DIN IEC 68-1: 40 / 125 / 56 sec.
Features
Features: (1)Solderable Power module; (2)3-phase full-bridge; (3)Including fast free-wheel diodes; (4)Package with insulated metal base plate.
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271714541893.jpg">
