Product Summary

The IRFP90N20DPBF is a SMPS MOSFET. The applications of the IRFP90N20DPBF include High frequency DC-DC converters, Lead-Free.

Parametrics

IRFP90N20DPBF absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 94A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 66 A; (3)IDM Pulsed Drain Current: 380W; (4)PD @TC = 25℃ Power Dissipation: 580 W; (5)Linear Derating Factor: 3.8 W/℃; (6)VGS Gate-to-Source Voltage: ±30 V; (7)dv/dt Peak Diode Recovery, dv/dt: 6.7 V/ns; (8)TJ, TSTG, Operating Junction and Storage Temperature Range: -55 to + 175℃; (9)Soldering Temperature, for 10 seconds: 300℃ (1.6mm from case); (10)Mounting torqe, 6-32 or M3 screw: 10 lbf·in (1.1N·m).

Features

IRFP90N20DPBF features: (1)Low Gate-to-Drain Charge to Reduce Switching Losses; (2)Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001); (3)Fully Characterized Avalanche Voltage and Current.

Diagrams

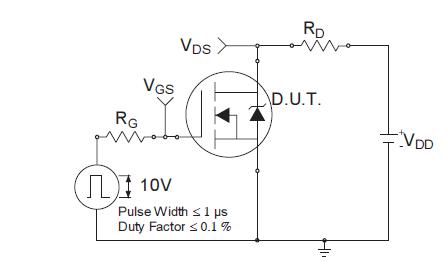

IRFP90N20DPBF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRFP90N20DPBF
IRFP90N20DPBF

International Rectifier

MOSFET MOSFT 200V 94A 23mOhm 180nCAC

Data Sheet

0-1: $3.59
1-25: $2.46
25-100: $1.83
100-250: $1.75
