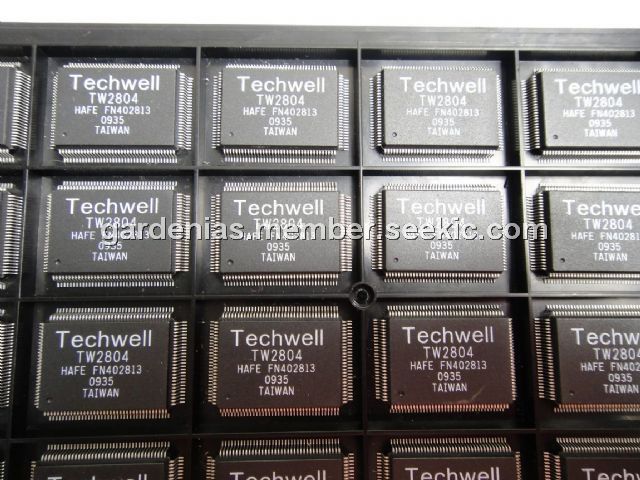

Product Summary

The TW2804HAFE is a high quality NTSC/ PAL video decoder, which convert analog composite to digital component YCbCr for security application. The TW2804HAFE contains four 10-bit A/D and proprietary digital gain/clamp controllers and utilizes proprietary techniques for separating luminance chrominance to reduce both crossluminance and cross-chrominance artifacts. The TW2804HAFE offers two differently scaled video outputs with 54MHz ITU-R BT-656 format for security system design. Four built-in motion detectors can also increase the feature of security system.

Parametrics

TW2804HAFE absolute maximum ratings: (1)VDDA (measured to VSSA)VDDAM: 3.5 V; (2)VDD (measured to VSS)VDDIM: 3.5 V; (3)VDDO (measured to VSS)VDDOM: 4.6 V; (4)Voltage on any signal pin (See the note below)- VSS: -0.5 VDDO+0.5 V; (5)Analog Input Voltage - VSSA: -0.5 VDDA+0.5 V; (6)Storage Temperature TS: -65 to 150 ℃; (7)Junction Temperature TJ: 0 to 125 ℃; (8)Vapor Phase Soldering (15 Seconds)TVSOL: 220 ℃.

Features

TW2804HAFE features: (1)Accepts all NTSC (M/N/4.43)/ PAL (B/D/G/H/I/K/L/M/N/60)standard formats with auto detection; (2)Four 10-bit video CMOS analog to digital converters; (3)Adjust video level with proprietary automatic clamp and gain control system; (4)Proprietary architecture for locking to weak, noisy, or unstable signals; (5)High performance adaptive comb filters for all NTSC/PAL standards; (6)IF compensation filter for improvement of color demodulation; (7)PAL delay lines for correcting PAL phase errors; (8)Programmable hue, saturation, contrast, brightness and sharpness; (9)Dual high quality horizontal and vertical down scaler for each channel.

Diagrams

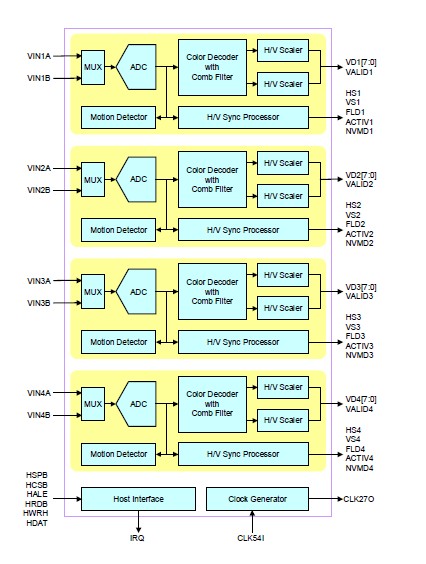

TW2804HAFE block diagram
