Product Summary

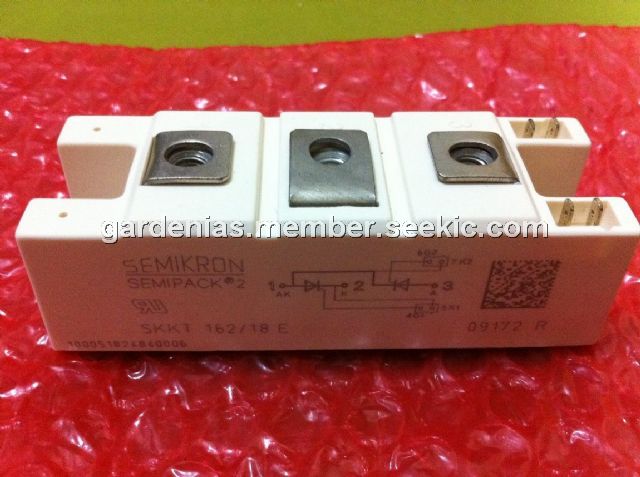

The SKKT162/18E is a thyristor / diode module. Typical applications of the SKKH132/18E are DC motor control, (e. g. for machine tools) temperature control (e. g. for ovens, chemical processes), professional light dimming (studios, theaters).

Parametrics

SKKT162/18E absolute maximum ratings: (1)ITAV sin. 180; Tc = 85 (100)℃: 156 (110)A; (2)IRMS P3/180F; T = 35 ℃; W1 / W3: 265/3 185A; (3)vT Tvj = 25 ℃; lT = 500 A: max. 1.6V; (4)VT(TO)Tvj = 125 ℃: max. 1V; (5)Idd;Ird Tvj = 125 VRD = VRRm, VDD = VDRM: max. 40mA; (6)tgd TVJ = 25 ℃; lG = 1 A: 1μS; (7)V VD = 0,67 VDRM: 2μS; (8)Il Tvj = 25 ℃; Rg = 33 O; typ. / max: 300/ 1000mA; (9)tq Tvj = 125 ℃: 150μS; (10)Ih Tvj = 25 CC; typ. / max: 150/400mA; (11)Il Tyj = 25 ℃; Rg = 33 Q; typ. / max: 300/ 1000mA; (12)Vqd Tvj = 125 ℃; d.c.: max. 0,25V; (13)IGD Tvj = 125 ℃; d.c.: max. 10mA; (14)Tvj: -40 to + 125℃; (15)Tstg: -40 to + 125℃.

Features

SKKT162/18E features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized, file no. E 63532.

Diagrams

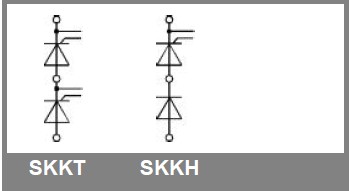

SKKT162/18E block diagram
