Product Summary

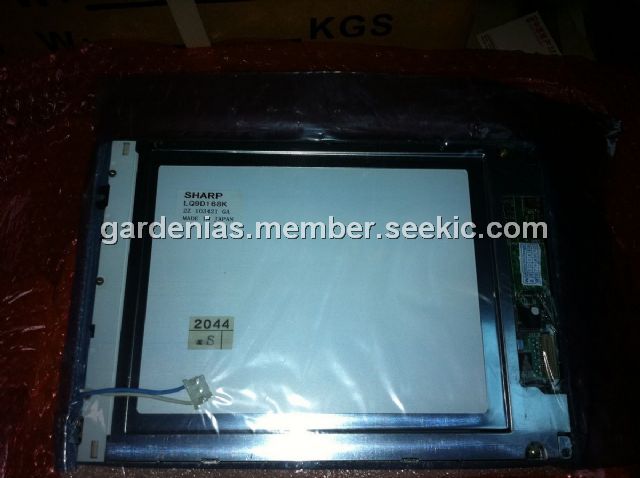

The LQ9D168K is a Color Active Matrix Liquid Crystal Display(LCD) module that uses amorphous silicon TFTs as a switching devices. The LQ9D168K is composed of a low-reflection-type color TFT-LCD panel, driver ICs. control circuit, power supply cirucit and a backlight unit. Graphics and texts can be displayed on a 640×3×480 dots pannel with 4096 colors by supplying 12 bit data signal(4 bit/color).

Parametrics

LQ9D168K absolute maximum ratings: (1)On the condition of Ta=25℃, Input voltage Vi: -0.3~VCC+0.3V; (2)On the condition of Ta=25℃,VCC supply voltage VCC: 0~+6V; (3)Storage temperature Tstg: -25~+60℃; (4)Operating temperature(ambient)Topa: 0~+50℃.

Features

LQ9D168K features: (1)Low driving voltage and low power consumption; (2)Small footprint and thin shape; (3)Light weight; (4)Low surface reflection.

Diagrams

LQ9D168K block diagram
