Product Summary

The ADSP-BF532SBSTZ400 is a blackfin embedded processor. It is member of the blackfin family of products, incorporating the analog devices, MSA. The ADSP-BF532SBSTZ400 combines a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISClike microprocessor instruction set, and single instruction, multiple data (SIMD) multimedia capabilities into a single instruction set architecture.

Parametrics

ADSP-BF532SBSTZ400 absolute maximum ratings: (1)internal supply voltage: -0.3 to 1.45V; (2)External supply voltage: -0.5 to 3.8V; (3)input voltage: -0.5 to 3.8V; (4)Output voltage swing: -0.5 to VDDEXT+0.5V; (5)Storage temperature range: -65 to 150℃; (6)junction temperature: 125℃.

Features

ADSP-BF532SBSTZ400 features: (1)Up to 600MHz high performance Blackfin processor; (2)Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs, 40-bit shifter; (3)RISC-like register and instruction model for ease of programming and compiler-friendly support Advanced debug, trace, and performance monitoring; (4)Wide range of operating voltages.

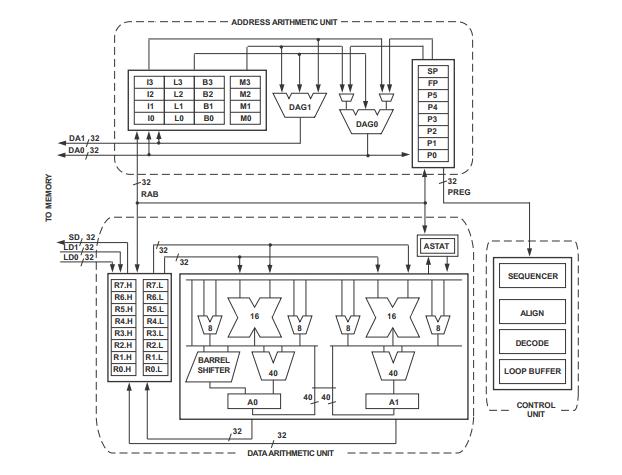

Diagrams

ADSP-BF532SBSTZ400 typical applications

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADSP-BF532SBSTZ400
ADSP-BF532SBSTZ400

IC DSP CTLR 16BIT 400MHZ 176LQFP
Data Sheet
0-1: $11.08
1-10: $10.08
10-100: $8.56
100-250: $7.81
250-500: $7.31
500-1000: $6.72
