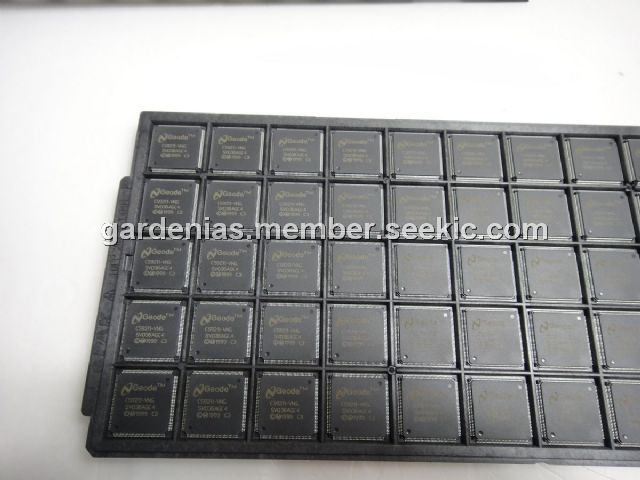

CS9211-VNG

Product Summary

The CS9211-VNG is a Geode. CS9211 Graphics Companion Flat Panel Display Controller which suitable for systems that use any GX-series processor (e.g., GX1, GXLV, GXm) along with the CS5530A I/O companion, also members of the Geode family of products. The CS9211-VNG converts the digital pixel stream output of the CS5530A to the digital RGB inputs used by standard single and dual-scan STN LCD display panels. Support is provided for both color and monochrome dual-scan STN (DSTN) flat panels up to 1024x768 resolution, and for color single-scan panels up to 640x480 resolution.

Parametrics

CS9211-VNG absolute maximum ratings: (1)Operating Case Temperature: 130℃; (2)Storage Temperature: -40 to 150℃; (3)Supply Voltage: 4.0 V.

Features

CS9211-VNG features: (1)Supports most SVGA DSTN panels and the VESA FPDI (Flat Panel Display Interface) Revision 1.0 Specification; (2)Directly interfaces to panels; no external drivers needed (excluding backlight inverter); (3)Supports 18-bit color pixel input data stream in 6:6:6 format, for a maximum display of 262,144 colors; (4)Supports up to 65 MHz pixel clock (DOTCLK); (5)Supports resolutions up to 1024x768 pixels; (6)Fast display refresh rate, up to 120 Hz for DSTN panels, achieved by writing both panel halves simultaneously; (7)16- or 24-bit dual-scan color STN (DSTN) support; (8)8- or 16-bit dual-scan monochrome STN (DSTN) support; (9)8-bit single-scan color STN (SSTN) panel support; (10)TFT panel support provided via pass-through mode; (11)9-, 12- or 18-bit TFT support.; (12)9+9 or 12+12-bit, 2 pixels per clock TFT panel support.; (13)Frame rate modulation (FRM) allows up to 32 shades of gray (intensities) for each primary color (R,G,B) with no loss of spatial resolution; (14)Proprietary dithering algorithm allows display of additional colors for a maximum of 262,144 colors; (15)Programmable control of input and output sync pulse widths, delays, and polarities allows interfaces to many panel types; (16)Programmable panel power sequence controls; (17)Built-in memory controller supports either SDRAM or EDO memory for the DSTN frame buffer; (18)Configuration via a serial programming interface; (19)Low-power, 3.3V operation; (20)144-pin LQFP (Low-profile Quad Flat Pack).

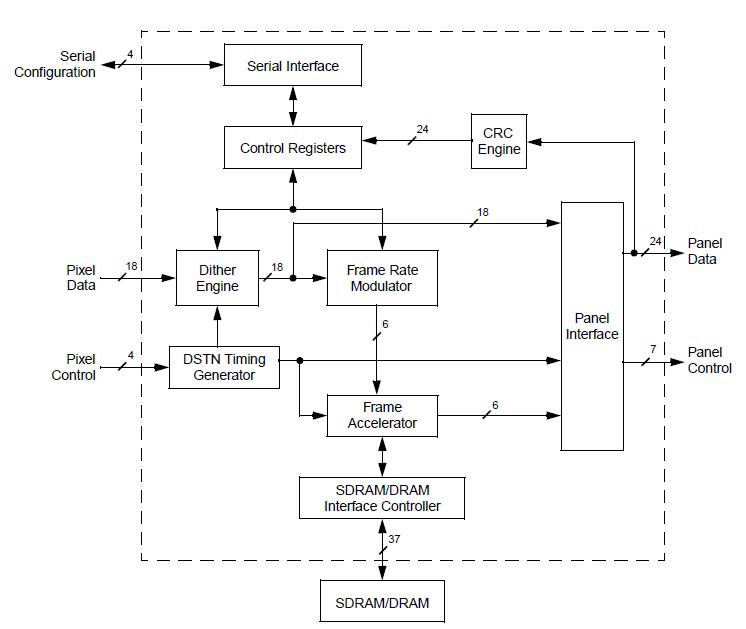

Diagrams
