Product Summary
The MAX5024LASA is a high-voltage linear regulator operates from a +6.5V to +65V input voltage and deliver up to 150mA of output current. The device consumes only 60μA of quiescent current with no load and withstand a -60V reverse-battery voltage at the input. The MAX5024LASA includes an active-low internal microprocessor (μP) reset circuit that asserts when the regulator output drops below the preset output voltage threshold by 7.5% or 12.5%, depending on the device selected. Both devices are available with a fixed +3.3V or +5V output. The MAX5024LASA is short-circuit protected and include thermal shutdown.
Parametrics
MAX5024LASA absolute maximum ratings: (1)In to GND: -60 to 70V; (2)OUT to GND: -0.3 to 13.2V; (3)Maximum current to any pin: ±20mA; (4)Continuous power dissipation: 1538mW; (5)Operating temperature range: -40 to 125℃; (6)Lead temperature: 300℃; (7)Storage temperature range: -65 to 150℃.
Features
MAX5024LASA features: (1)Wide Operating Input Voltage Range +6.5V to +65V;(2)Thermally Enhanced 8-Pin SO Package with Exposed Pad Dissipates 1.5W;(3)Guaranteed 150mA Output Current;(4)60μA No-Load Supply Current;(5)-60V Reverse-Battery Protection;(6)Preset +3.3V or +5.0V Output Voltage;(7)Thermal and Short-Circuit Protection;(8)Operate Over -40℃ to +125℃ temperature Range; (9)Integrated μP Reset Circuit;(10)Regulator Enable and Hold Inputs Implement Self-Holding Circuit;(11)SET Input for Adjustable Output Voltage (MAX5024)

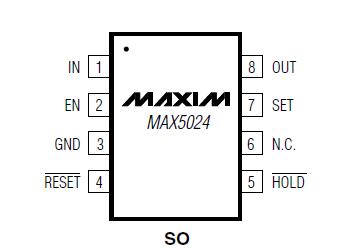

Diagrams
