Product Summary

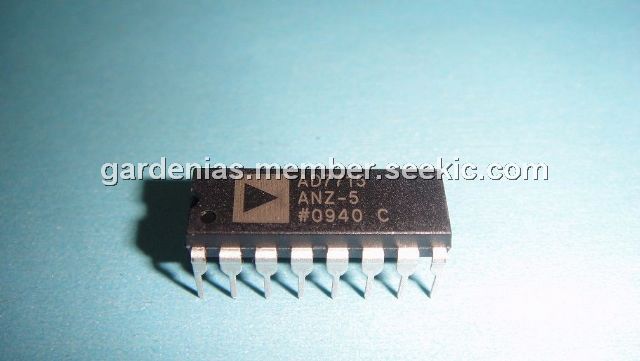

The AD7715ANZ-5 is a complete analog front end for low frequency measurement applications. Its package is DIP-16.

Parametrics

Absolute maximum ratings: (1)AVDD to AGND: –0.3V to +7V; (2)AVDD to DGND: –0.3V to +7V; (3)AVDD to DVDD: –0.3V to +7V; (4)DVDD to AGND: –0.3V to +7V; (5)DVDD to DGND: –0.3V to +7V; (6)DGND to AGND: –0.3V to +7V; (7)Analog Input Voltage to AGND: –0.3 V to AVDD + 0.3V; (8)Reference Input Voltage to AGND: –0.3 V to AVDD + 0.3V; (9)Digital Input Voltage to DGND: –0.3 V to DVDD + 0.3 V; (10)Digital Output Voltage to DGND: –0.3 V to DVDD + 0.3 V.

Features

Features: (1)Charge-Balancing ADC: 16 Bits No Missing Codes; 0.0015% Nonlinearity; (2)Programmable Gain Front End: Gains of 1, 2, 32 and 128; Differential Input Capability; (3)Three-Wire Serial Interface; (4)Ability to Buffer the Analog Input; (5)3 V (AD7715-3) or 5 V (AD7715-5) Operation; (6)Low Supply Current: 450êmA max @ 3êV Supplies; (7)Low-Pass Filter with Programmable Output Update; (8)16-Lead SOIC/DIP/TSSOP.

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271714629639.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD7715ANZ-5
AD7715ANZ-5


IC ADC 16BIT 5V 16-DIP

Data Sheet

0-1: $7.38
1-25: $6.20
25-100: $5.70
100-250: $5.20
250-500: $4.86
500-1000: $4.47
