Product Summary

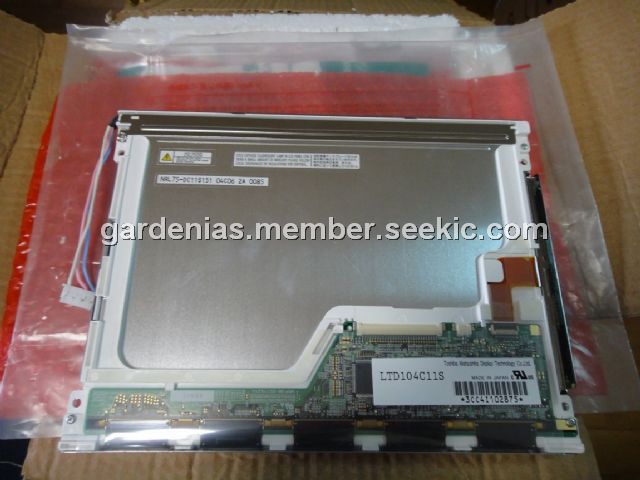

The LTD104C11S is a 26cm colour TFT LCD module.

Parametrics

LTD104C11S absolute maximum ratings: (1)Supply Voltage, (VDD): -0.3 to 6.5 V; (VFL): 0 to 2.0 kV(rms); (2)FL Driving Frequency (fFL): 100 kHz; (3)Input Signal Voltage (VIN): -0.3 to VDD+0.3 V; (4)Operating Temperature: -10 to 65℃; (5)Storage Temperature: -20 to 80℃; (6)Storage Humidity (Max. wet bulb temperature = 39℃): 10 to 90 %(RH).

Features

LTD104C11S features: (1)10.4” VGA color display with High Luminance (400cd/m2); (2)(Wide Viewing Angle (Vertical:120, Horizontal:140); (3)Built in Long Life Lamps (50,000 h).

Diagrams

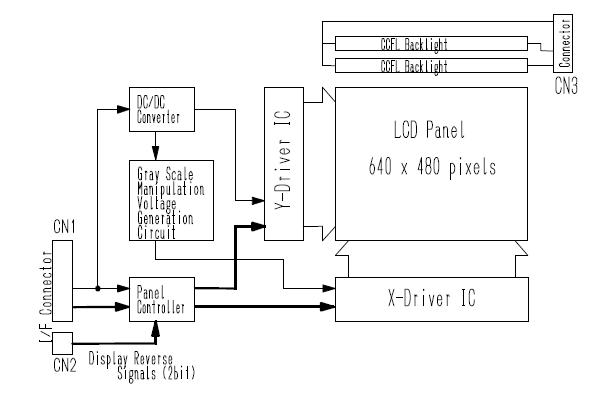

LTD104C11S block diagram
