Product Summary
The AD7248AARZ is a complete, 12-bit, voltage output, digital-to-analog converter with output amplifier and Zener voltage reference on a monolithic CMOS chip. Improvements include operation from 12 V to 15 V supplies, a ±1/2 LSB linearity grade, faster interface times and better full scale and reference variations with VDD. Additional features of the AD7248AARZ include extended temperature range operation for commercial and industrial grades. No external user trims are required to achieve full specified performance.
Parametrics
AD7248AARZ absolute maximum ratings: (1)VDD to AGND: -0.3 V to +17 V; (2)VDD to DGND: -0.3 V to +17 V; (3)VDD to VSS: -0.3 V to +34 V; (4)AGND to DGND: -0.3 V to VDD; (5)Digital Input Voltage to DGND: -0.3 V to VDD +0.3 V; (6)VOUT to AGND2: VSS to VDD; (7)VOUT to VSS2: 0 V to +24 V; (8)VOUT to VDD2: -32 V to 0 V; (9)REF OUT2 to AGND: 0 V to VDD; (10)Power Dissipation (Any Package) to +75℃: 450 mW; Derates above +75℃ by: 6 mW/℃; (11)Operating Temperature, Commercial (A, B Versions): -40℃ to +85℃; Extended (S Version): -55℃ to +125℃; (12)Storage Temperature: -65℃ to +150℃; (13)Lead Temperature (Soldering, 10 secs): +300℃.
Features
AD7248AARZ features: (1)12-Bit CMOS DAC with Output Amplifier and Reference; (2)Improved AD7245/AD7248: 12 V to 15 V Operation; ±1/2 LSB Linearity Grade; Faster Interface–30 ns typ Data Setup Time; (3)Extended Plastic Temperature Range (-40℃ to +85℃); (4)Single or Dual Supply Operation; (5)Low Power–65 mW typ in Single Supply; (6)Parallel Loading Structure: AD7245A; (7)(8+4) Loading Structure: AD7248A.

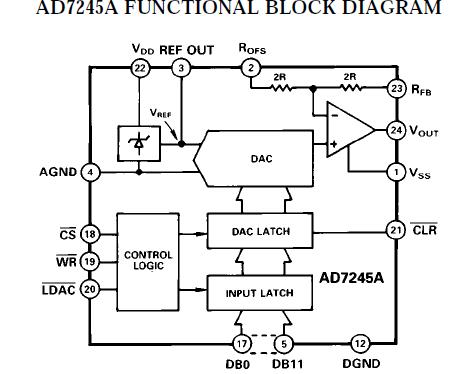

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AD7248AAR |
IC DAC 12BIT W/REF 20-SOIC |
Data Sheet |
|
|
||||||||||||||||||
AD7248AARZ |
IC DAC 12BIT W/REF 20-SOIC |
Data Sheet |
|
|
||||||||||||||||||
AD7248AARZ-REEL |
IC DAC 12BIT W/REF 20-SOIC |
Data Sheet |
|
|
