Product Summary

The LM75BIMMX-3 is a temperature sensor. It includes a delta-sigma analog-to-digital converter, and a digital overtemperature detector. It is suitable for thermal system management, thermal protection, test equipment and computers and office electronics.

Parametrics

Absoulte maximum ratings: (1)+VS to GND: -0.3V to +6.0V; (2)OS, SDA, SCL to GND: -0.3V to +6.0V; (3)All Other Pins to GND: -0.3V to (+VS + 0.3V); (4)Input Current at Any Pin: 5mA; (5)Package Input Current: 20mA; (6)OS Output Sink Current: 10mA; (7)Operating Temperature Range: -55℃ to +125℃; (8)Junction Temperature: +150℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (soldering, 10s): +300℃.

Features

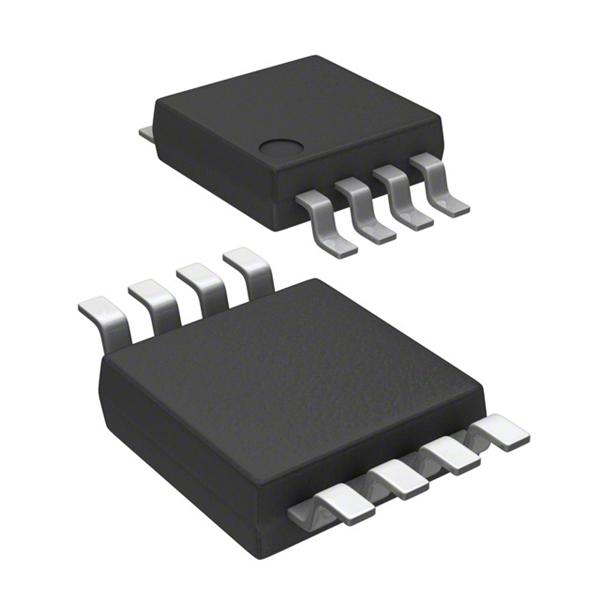

Features: (1)SO (SOP) and μMAXR (μSOP) Packages; (2)I2C Bus Interface; (3)Separate Open-Drain OS Output Operates as Interrupt or Comparator/Thermostat Input; (4)Register Readback Capability; (5)Power-Up Defaults Permit Stand-Alone Operation as a Thermostat; (6)3.0V to 5.5V Supply Voltage; (7)Low Operating Supply Current 250μA (typ), 1mA (max); (8)4μA (typ) Shutdown Mode Minimizes Power Consumption; (9)Up to Eight LM75s Can Be Connected to a Single Bus.

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20127171493384.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM75BIMMX-3
LM75BIMMX-3

National Semiconductor (TI)

Board Mount Temperature Sensors

Data Sheet

0-3500: $0.48
3500-7000: $0.46
7000-10500: $0.45
LM75BIMMX-3/NOPB
LM75BIMMX-3/NOPB

National Semiconductor (TI)

Board Mount Temperature Sensors

Data Sheet

0-1: $1.10
1-25: $0.89
25-100: $0.80
100-250: $0.71
LM75BIMMX-3+
LM75BIMMX-3+

Maxim Integrated Products

Board Mount Temperature Sensors 2-Wire Digital Temp Snsr & Thrml Wtchdog

Data Sheet

0-2080: $0.57
LM75BIMMX-3+T
LM75BIMMX-3+T

Maxim Integrated Products

Board Mount Temperature Sensors Digital Temperature Sensor

Data Sheet

0-1940: $0.67
1940-2500: $0.67
