Product Summary

The HDM6448-S-9J0F is a LCD display.

Parametrics

HDM6448-S-9J0F absolute maximum ratings: (1)Supply voltage, VDD-VSS: -0.3 to 6.5 V; (2)Supply voltage for LCD, VDD-VEE: 0 to 27.0 V; (3)Input voltage, VIN: -0.3 to VDD+0.3 V; (4)CCFL operating voltage, VFL: 1500 Vrms; (5)CCFL operating current, IFL: 10 mArms; (6)Operating temperature, TOP: 0 to 50℃; (7)Storage temperature, TSTG: -25 to 60℃; (8)Humidity (no condensation): 10 to 85 %RH.

Features

HDM6448-S-9J0F features: (1)Backlight: CCFL; (2)Options: Black and White FSTN; (3)Built-in Controller: None.

Diagrams

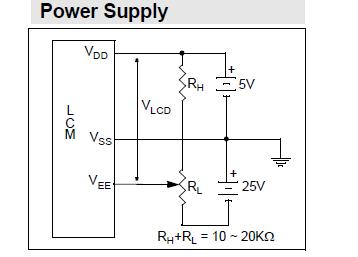

HDM6448-S-9J0F block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HDM6448-S-9J0F
HDM6448-S-9J0F

Hantronix

LCD Graphic Display Modules & Accessories 640X480 FSTN CCFL BL

Data Sheet

Negotiable
