Product Summary

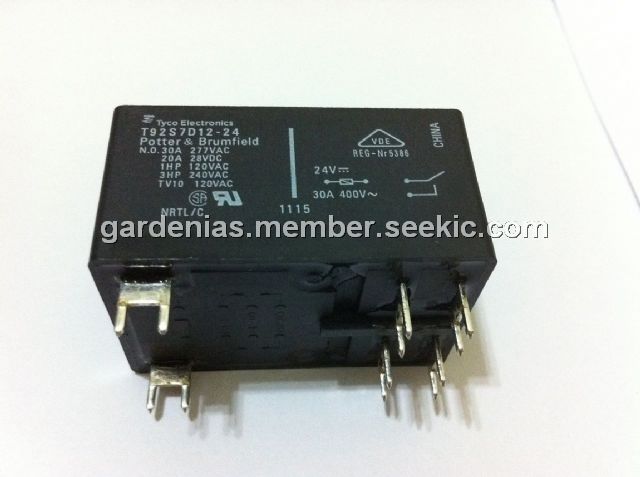

The T92S7D12-24 is a General Purpose High Power PCB Relay. The applications of the T92S7D12-24 include HVAC, residential / commercial appliances, industrial controls.

Parametrics

T92S7D12-24 absolute maximum ratings: (1)Contact arrangement: 2 form A (NO), 2 form C (CO); (2)Rated voltage: 277VAC; (3)Max. switching voltage: 600VAC; (4)Rated current: 30A NO; 3A NC; (5)Limiting continuous current: 40A NO; 3A NC; (6)Limiting making current: 40A NO; 3A NC; (7)Limiting breaking current: 40A NO; 3A NC; (8)Contact material: AgSnOInO, AgCdO; (9)Min. recommended contact load: 500ma (NO)/ 100ma (NC), 12VAC; (10)Frequency of operation, with load: 360hr; (11)Operate/release time max., including bounce: 25/25ms.

Features

T92S7D12-24 features: (1)40A, 2 form A (NO) and 2 form C (CO) switching capability; (2)Designed to control compressor loads to 3.5 tons, 110LRA / 25.3FLA; (3)Meets requirements of UL 508 and UL 873 spacings - 8mm through air, 9.5mm over surface; (4)Meets requirements of VDE 8mm spacing, 4kV dielectric coil to contact; (5)Meets requirements of UL Class F construction; (6)UL approved for 600VAC switching (1.5HP); (7)New screw terminal version (consult factory for availability, ratings).

Diagrams

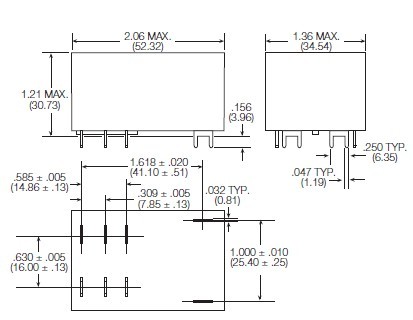

T92S7D12-24 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
T92S7D12-24
T92S7D12-24

TE Connectivity / P&B

General Purpose / Industrial Relays DPST-NO PC MT 24VDC

Data Sheet

0-1: $6.43
1-10: $6.16
10-25: $5.90
25-50: $5.44
