Product Summary

The STA013 is a MPEG 2.5 Layer III audio decoder. The STA013 is a fully integrated high flexibility MPEG Layer III Audio Decoder, capable of decoding Layer III compressed elementary streams, as specified in MPEG 1 and MPEG 2 ISO standards. The device decodes also elementary streams compressed by using low sampling rates, as specified by MPEG 2.5. This interface is software programmable to adapt the STA013 digital output to the most common DACs architectures used on the market. Its applications include PC sound cards, multimedia players.

Parametrics

STA013 absolute maximum ratings: (1)power supply: -0.3 to 4V; (2)voltage on input pins: -0.3 to VDD+0.3V; (3)voltage on output pins: -0.3 to VDD+0.3V; (4)Storage temperature: -40 to 150℃; (5)operative ambient temp: -40 to 85℃; (6)operating junction temperature: -40 to 125℃.

Features

STA013 features: (1)digital volume control; (2)digital bass&treble control; (3)serial bitsteream input interface; (4)anciliary data extraction via I2C interface; (5)low power consumption; (6)CRC check and synchronisation error detection with software indicators.

Diagrams

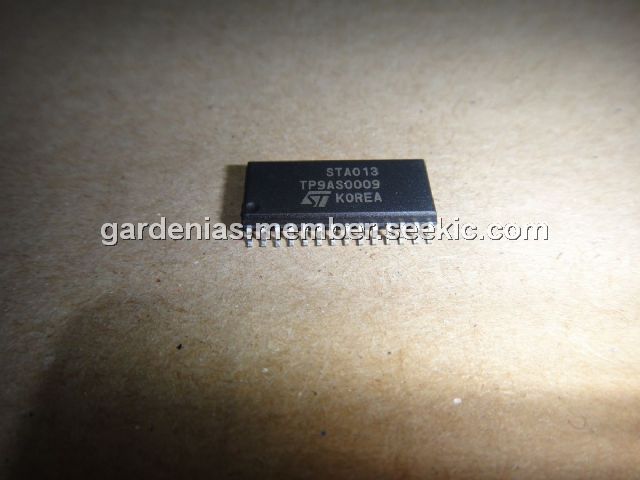

STA013 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STA013
STA013
Other

Data Sheet
Negotiable
STA013$
STA013$
STMicroelectronics
Audio DSPs MPEG Audio Decoder
Data Sheet
0-554: $4.39
554-1000: $4.34
STA013$013TR
STA013$013TR
STMicroelectronics
Audio DSPs MPEG Audio Decoder
Data Sheet
0-672: $4.91
672-1000: $4.39
STA013B$
STA013B$
STMicroelectronics
Audio DSPs MPEG Audio Decoder
Data Sheet
Negotiable
STA013B$13TR
STA013B$13TR
STMicroelectronics
Audio DSPs MPEG Audio Decoder
Data Sheet
Negotiable
STA013B
STA013B
Other

Data Sheet
Negotiable
STA013EVB
STA013EVB
STMicroelectronics
Audio IC Development Tools Eval Brd for STA013$
Data Sheet
Negotiable
STA013T$
STA013T$
STMicroelectronics
Audio DSPs MPEG Audio Decoder
Data Sheet
0-759: $4.39
759-1000: $4.34
