SRDA05-4.TBT

diode array, 500W, 15V, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.41~0.42 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.41~0.42

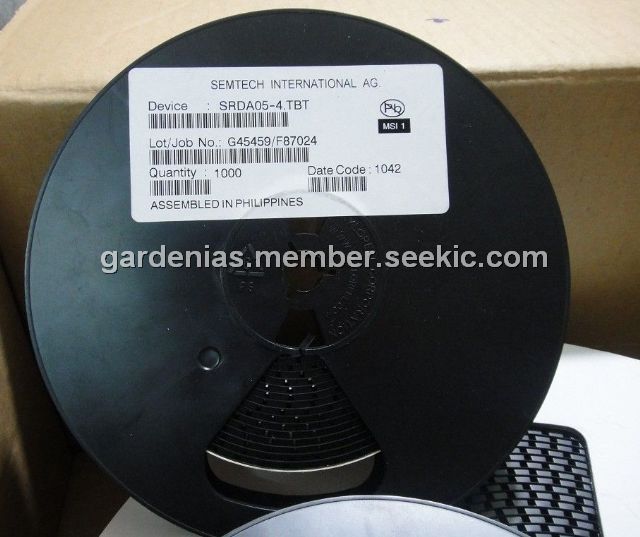

PartNumber:: SRDA05-4.TBT

Brand:: Semtech Corporation - Semtech | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Gardenias's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-04

From Other Seller

Part Number:SRDA05-4.TBT
US $0.41 - 0.42
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

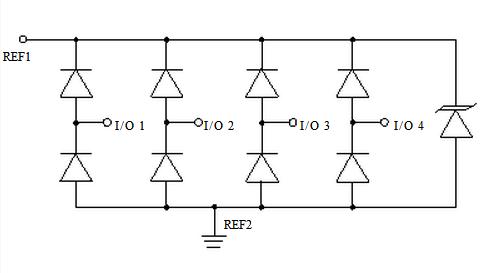

The SRDA05-4.TBT is a low capacitance TVS diode array. It is designed to protect high speed data interfaces. The SRDA series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning. The unique design incorporates surge rated, low capacitance steering diodes and a TVS diode in a single package. During transient conditions, the steering diodes direct the transient current to ground via the internal low voltage TVS. Its applications include USB power and data line protection, T1/E1 secondary IC side protection, T3/E3 secondary IC side protection, HDSL, SDSL secondary IC isde protection.

Parametrics

SRDA05-4.TBT absolute maximum ratings: (1)peak pulse power: 500W; (2)Peak forward voltage: 15V; (3)Lead soldering temperature: 260℃; (4)operating temperature: -65 to 125℃; (5)storage temperature: -65 to 150℃.

Features

SRDA05-4.TBT features: (1)Array of surge rated diodes with internal TVS diode; (2)Protects four I/O lines; (3)Low capacitance (<15pF) for high-speed interfaces; (4)Low operating and clamping voltages; (5)Solid-state technology.
