Product Summary

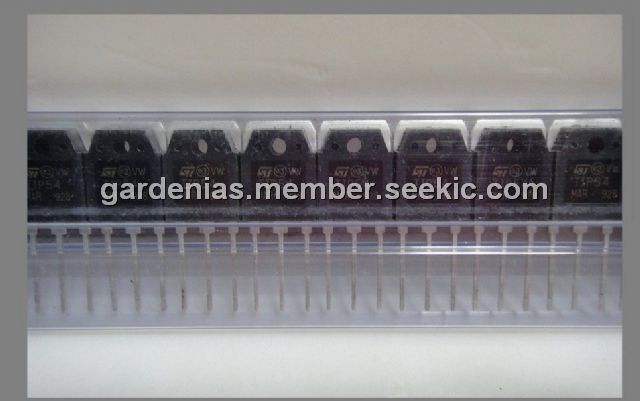

The TIP54 is a High-Voltage NPN Silicon Power Transistor. The applications of the include line operated audio output amplifier, and switching power supply drivers.

Parametrics

TIP54 absolute maximum ratings: (1)VCBO, Collector-Base Voltage: 500 V; (2)VCEO, Collector-Emitter Voltage: 400 V; (3)VEBO, Emitter-Base Voltage: 5 V; (4)IC, Collector Current-Continuous: 3.0 A; (5)ICM, Collector Current-Peak: 5.0 A; (6)IBB, Base Current: 0.6 A; (7)PD, Collector Power Dissipation, TC=25℃: 100 W; (8)Tj, Junction Temperature: 150 ℃; (9)Tstg, Storage Temperature Range: -65~150 ℃.

Features

TIP54 features: (1)DC Current Gain -hFE = 30~150@ IC= 0.3A; (2)Collector-Emitter Sustaining Voltage: VCEO(SUS) = 400V(Min).

Diagrams

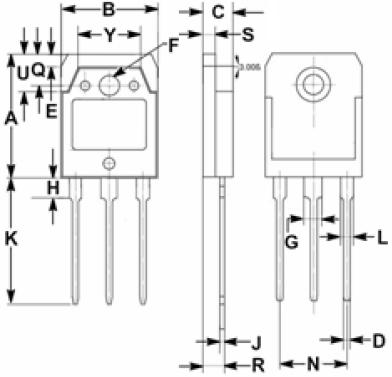

TIP54 block diagram
