Product Summary

The NY24W-K is a power relay.

Parametrics

NY24W-K absolute maximum ratings: (1)rating(resitive): 3A; (2)maximum carrying current: 5A; (3)maximum switching power: 750VA; (4)Maximum switching current: 5A; (5)maximum switching load: 1mA, 5VDC; (6)nominal power: 120mW; (7)operate power: 54mW; (8)operating temperature: -40 to 90℃.

Features

NY24W-K features: (1)Ultra slim type with 5 mm thickness; Good for high density mounting; (2)Low power consumption and high sensitivity: Nominal coil power: 120 mW; Operating power: 54 mW; (3)UL, CSA, VDE recognized Conforms to IEC61010, 61131 High isolation: Surge voltage: 5080V, Dielectric strength: 3000VAC (coil and contacts), SIL pitch terminals, Plastic sealed type; (4) Compatible with solid state I/O module type SN in size and pin (terminal) arrangement; (5)Environmentally friendly cadmium free contact type; (6)RoHS compliant since date code: 0439C1.

Diagrams

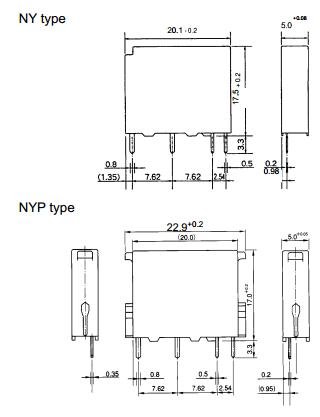

NY24W-K dimnsions
