Product Summary

The MMZ1608Y121BTA00 is a chip bead. Its applications include removal of signal line noises of cellular phones, PCS, note PCs, TVs, TV tuners, STBs, audio player, DVDs, DSCs, DVCs, game machines, digital photo frames, car navigation system, PNDs, etc.

Parametrics

MMZ1608Y121BTA00 absolute maximum ratings: (1)impedance: 120Ω; (2)DC resistance: 0.2Ωmax.; (3)rated current: 500mA; (4)products thickness: 0.8T.

Features

MMZ1608Y121BTA00 features: (1)Chip bead(impeder), MMZ series offers 7 construction materials; (2)Size standardized for use by automatic assembly equipment; (3)No preferred orientation; (4)Either flow or reflow soldering methods can be used due to electroplating of the terminal electrodes; (5)High reliability due to an entirely monolithic structure; (6)Closed magnetic circuit structure allows high-density installation while preventing crosstalk between circuits; (7)Low DC resistance structure of electrode prevents wasteful electric power consumption; (8)The products contain no lead and also support lead-free soldering.

Diagrams

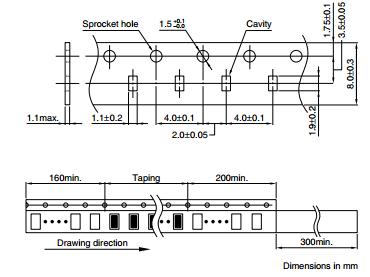

MMZ1608Y121BTA00 dimensions
