Product Summary
The G6K-2P-12V DC12 is a surface mounting relay with the world smallest mounting area and a height of only 5.2mm. Its applications include Telecommunication equipment, Office automation machines, Audio-visual products. The G6K-2P-12V DC12 ensures a dielectric strength of 1,500 VAC and conforms to FCC Part 68 (i.e., withstanding an impulse withstand voltage of 1,500 V for 10 × 160 μs).
Parametrics
G6K-2P-12V DC12 absolute maximum ratings: (1)contact resistance: 100mΩ max.; (2)operating time: 3ms max.; (3)release time: 3ms max.; (4)insulation resistance: 1000MΩ min.; (5)dielectric strength between coil and contacts: 1500VAC; (6)failure rate: 10μA at 10mVDC.
Features
G6K-2P-12V DC12 features: (1)Low profile of 5.2 mm improves mounting efficiency; (2)Light weight of 0.7 g contributes to higher speed mounting; (3)Consumes approximately 70% the power of a conventional OMRON model and operates at a current that is as low as 100 mW; (4)Surface mounting terminal models incorporate a unique terminal structure with high infrared irradiation efficiency which allows the terminal temperature to rise easily when mounting the IRS, thus ensuring excellent soldering; (5)New-Y models offer an impulse withstand voltage of 2,500 V for 2 × 10 μs (conforms to Telcordia specifications) by optimizing the distance between coil and contacts.

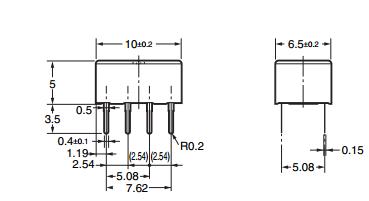

Diagrams
 |
