Product Summary

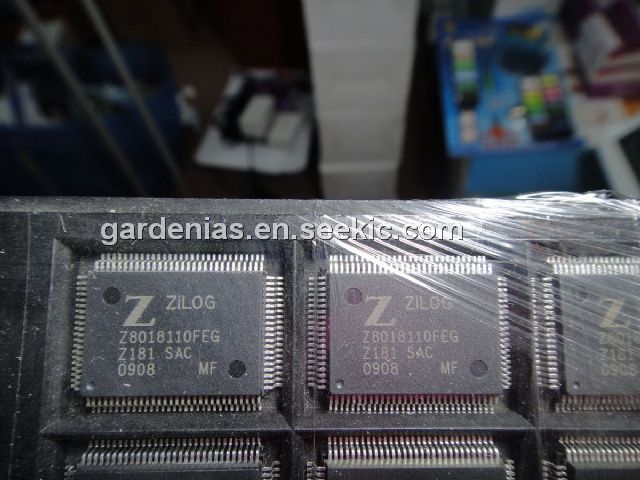

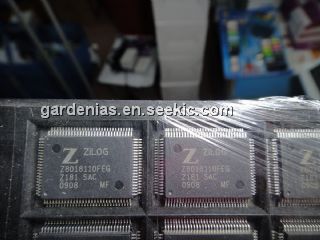

The Z8018110FEG is a smart access controller. It is a sophisticated 8-bit CMOS microprocessor that combines a Z180-compatible MPU, one channel of Z85C30 serial communation controller, a Z80 CTC, two 80bit general purpose parallel ports, and two chip select signals.
Parametrics
Z8018110FEG absolute maximum ratings: (1)voltage on VCC with respect to VSS: -0.3 to 7V; (2)voltages on all iputs with respect to VSS: -0.3 to VCC+0.3V; (3)Storage temperature: -65 to 150℃.
Features
Z8018110FEG features: (1)high speed operation; (2)low power consumption in two operating modes; (3)wide operational voltage range; (4)on-board Z84C30CTC; (5)two 8-bit general purpose parallel ports; (6)two asynchronous channels.

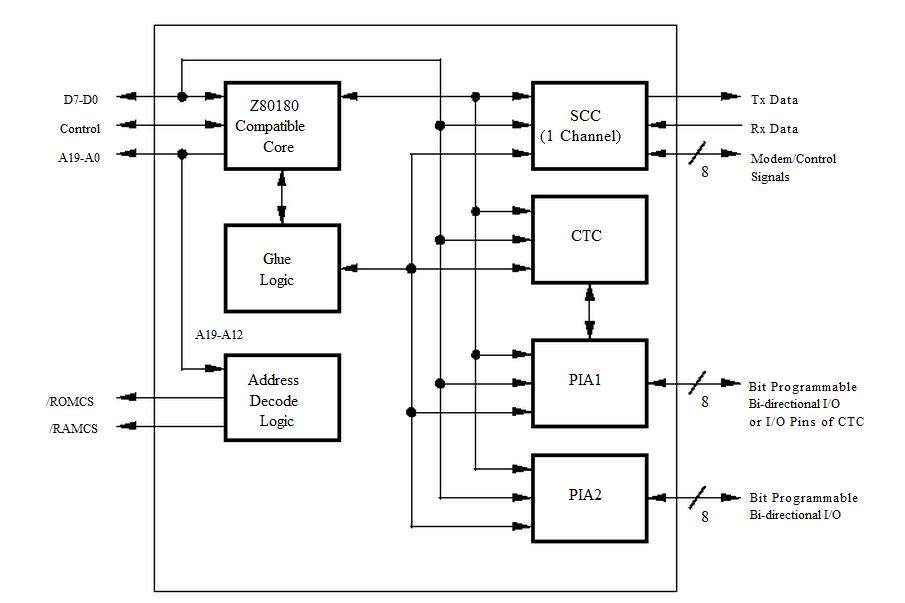

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Z8018110FEG |
ZiLOG |
Microprocessors (MPU) 10MHz SMART ACC CONT |
Data Sheet |
|
|
|||||||||||
