Product Summary

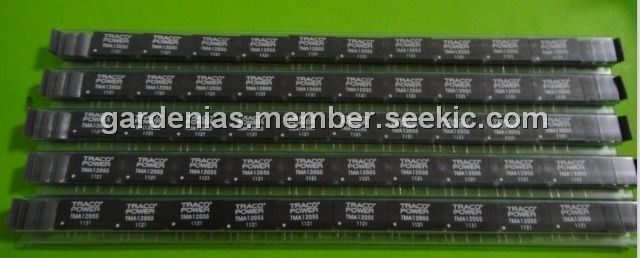

The TMA1205S is a miniature, isolated 1 W DC/DC-converter in a Single-in-Line package (SIP). Requiring only 1.2 cm2 board space they offer the ideal solution in many space critical applications for board level power distribution. The use of SMD-technology makes it possible to offer a product with high performance at low cost.

Parametrics

TMA1205S absolute maximum ratings: (1)input voltage: 12VDC; (2)output voltage: 5VDC; (3)output current max.: 200mA; (4)efficiency typ.: 73%; (5)input current no load load: 30mA; (6)surge voltage: 9V.

Features

TMA1205S features: (1)Single-in-Line Package (SIP); (2)Single and Dual Output Models; (3)I/O-Isolation 1000 VDC; (4)High Efficiency up to 81%; (5)Operating Temperature – 40°C to +85°C; (6)Pin-compatible with other Manufacturers; (7)100% Burn-in (8 h); (8)2 Year Product Warranty.

Diagrams

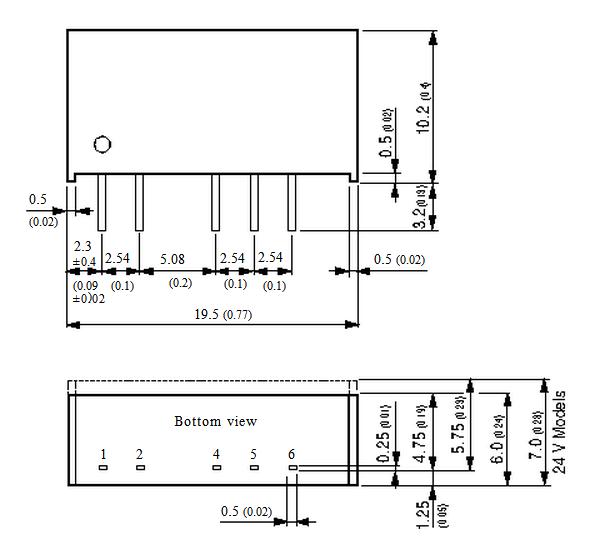

TMA1205S dimensions
