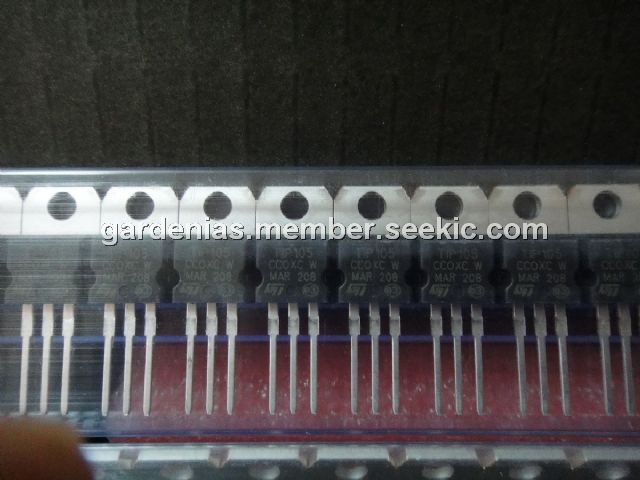

Product Summary
The TIP105 is a silicon Epitaxial-Base PNP transistor in monolithic Darlington configuration mounted in TO-220 plastic package intented for use in power linear and switching applications. The preferred complementary NPN type is the TIP102. Its applications include linear and switching industrial equipemnt, audio power amplifier, general power switching, DC-AC converter, DC motor.
Parametrics
TIP105 absolute maximum ratings: (1)collector-base voltage: 60V; (2)collector-emitter voltage: 60V; (3)emitter-base voltage: 5V; (4)collector current: 8A; (5)collector peak current: 15A; (6)base current: 1A; (7)total dissipation: 80W.
Features
TIP105 features: (1)Complementary PNP-NPN devices; (2)integrated antiparallel collector-emitter diode.

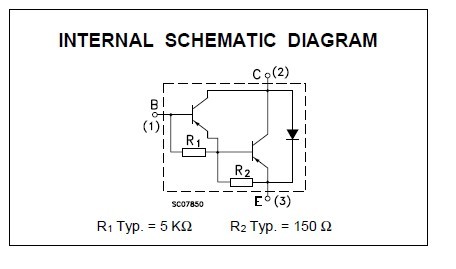

Diagrams
