Product Summary

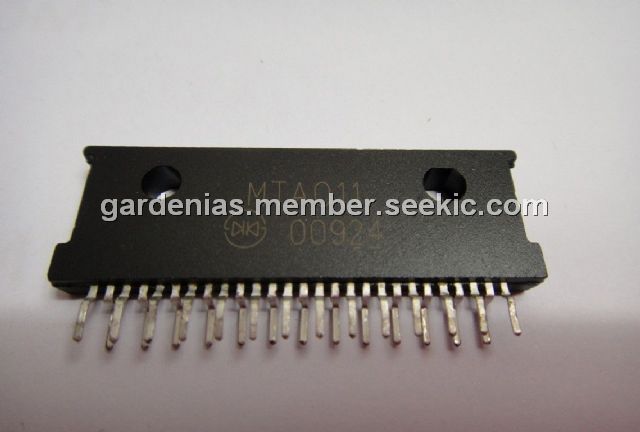

The MTA011 is a High Output Interface Driver IC. The applications of the MTA011 include Head needle drive for printer·ECR, Stepping motor drive for office automation products, Display drive.
Parametrics
MTA011 absolute maximum ratings: (1)Output Voltage, VCEO(SUS): 80 V; (2)Output Current, IO: 2 A; (3)Reverse Voltage(flyback diode), VR: 80 V; (4)Forward Current(each flyback diode), IF: 2 A; (5)Forward Current(each common terminal), IF: 10 A; (6)Output Current(each GND terminal), IGND: 10 A; (7)Logic Supply Voltage, VCC: 0～7 V; (8)Logic Input Voltage, VIN: 0～VCC V; (9)Enable Input Voltage, VENA: 0～VCC V; (10)Total Power Dissipation, PT: 5 W; (11)Junction Temperature, Tj: 150 ℃; (12)Storage Temperature, Tstg: -40～150 ℃.
Features
MTA011 features: (1)Nine output drivers per package; (2)TTL/CMOS compatible inputs (High active); (3)Enable input.
Diagrams
