Product Summary
The QTLP630C-7 is a surface mount LED lamp. Its applications include Keypad backlighting, Push-button backlighting, LCD backlighting. The QTLP630C-7 is designed to fit industry standard footprint. Low profile and wide viewing angle make these LEDs ideal choices for backlighting applications and panel illumination.
Parametrics
QTLP630C-7 absolute maximum ratings: (1)Continuous forward current: 30mA; (2)peak forward current: 180mA; (3)reverse voltage: 5V; (4)power dissipation: 72mW; (5)operating temperature: -40 to 85℃; (6)storage temperature: -40 to 90℃; (7)lead soldering time: 260℃.
Features

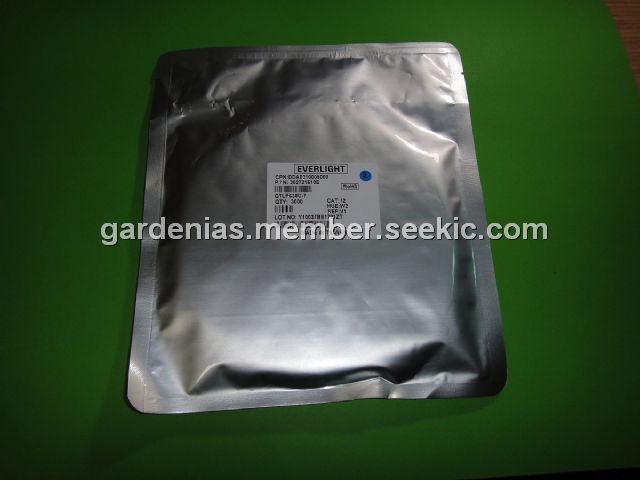

QTLP630C-7 features: (1)Small footprint - 2.0(L) X 1.25(W) X 1.1(H) mm; (2)Wide viewing angle of 140°; (3)Water clear optics; (4)Moisture-proof packaging; (5)Available in 0.315” (8mm) width tape on 7” (178mm) diameter reel; 2,000 units per reel.
Diagrams
 |
