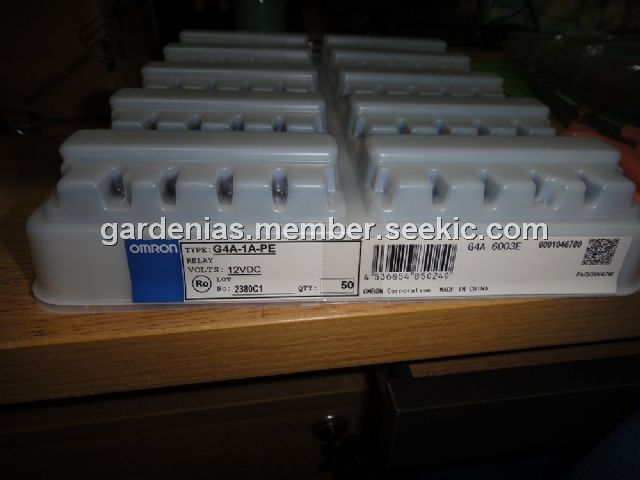

Product Summary

The G4A-1A-PE is a miniature single-pole relay with 80-A surge current and 20-A switching current.

Parametrics

Contact ratings: (1)Rated load: 20 A at 250 VAC; (2)Rated carry current :20 A; (3)Max. switching voltage: 250 VAC; (4)Max. switching current: 20 A; (5)Max. switching power: 5,000 VA; (6)Failure rate (reference value): 100 mA at 5 VDC.

Features

Features: (1)Ideal for motor switching; (2)Miniature, relay with high switching power and long endurance; (3)Creepage distance conforms to UL and CSA standards; (4)Highly noise-resistive insulation materials employed; (5)Standard model available with flux protection construction.

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201271714740944.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G4A-1A-PE DC12
G4A-1A-PE DC12


RELAY GEN PURPOSE SPST 20A 12V

Data Sheet

0-1: $4.64
1-25: $4.18
25-50: $3.71
50-100: $3.34
100-250: $3.16
250-500: $2.79
500-1000: $2.51
G4A-1A-PE DC24
G4A-1A-PE DC24


RELAY GEN PURPOSE SPST 20A 24V

Data Sheet

0-1: $4.64
1-25: $4.18
25-50: $3.71
50-100: $3.34
100-250: $3.16
250-500: $2.79
500-1000: $2.51
G4A-1A-PE DC5 BY OMZ
G4A-1A-PE DC5 BY OMZ


RELAY GEN PURPOSE SPST 20A 5V

Data Sheet

0-50: $4.83
G4A-1A-PE-T130DC5
G4A-1A-PE-T130DC5

Omron Electronics Inc-ECB Div

POWER PCB RELAY SPST-NO 5VDC

Data Sheet

1-1: $26.57
G4A-1A-PE-T130 DC12
G4A-1A-PE-T130 DC12

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay

Data Sheet

0-1: $4.94
1-25: $4.69
25-50: $4.31
50-100: $3.93
G4A-1A-PE DC5
G4A-1A-PE DC5

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay

Data Sheet

0-1: $5.67
1-25: $5.15
25-50: $4.72
50-100: $4.36
