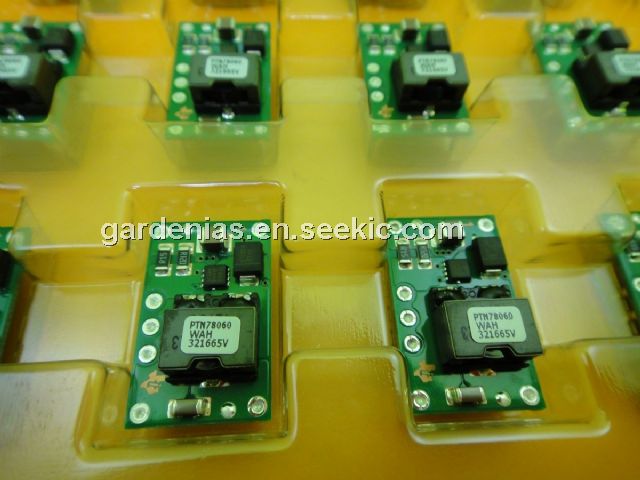

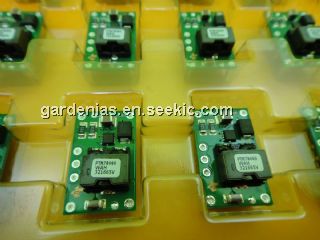

PTN78060WAH

3-A, WIDE-INPUT ADJUSTABLE SWITCHING REGULATOR - Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $13.50~13.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 50 :	13.80 / Piece
51 ~ 100 :	13.50 / Piece

PartNumber:: PTN78060WAH

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Gardenias's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-16

From Other Seller

Part Number:PTN78060WAH
US $13.50 - 13.80
PTN78060WAH

US $12.00 - 12.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PTN78060 is a series of high-efficiency, step-down integrated switching regulators (ISR), that represent the
third generation in the evolution of the popular (PT)78ST200, 78ST300, (PT)78HT200, and 78HT300 series of
products. In new designs, the PTN78060 series may also be considered in place of the PT6200, PT6210, and
PT6300 series of single in-line pin (SIP) products. In all cases, the PTN78060 has either similar or improved
electrical performance characteristics. The caseless, double-sided package has excellent thermal characteristics,
and is compatible with TI''s roadmap for RoHS and lead-free compliance.
Operating from a wide-input voltage range, the PTN78060 provides high-efficiency, step-down voltage
conversion for loads of up to 3 A. The output voltage can be set to any value over a wide adjustment range using
a single external resistor. The PTN78060W may be set to any value within the range, 2.5 V to 12.6 V, and the
PTN78060H from 11.85 V to 22 V. The output voltage of the PTN78060W can be as little as 2 V lower than the
input, allowing operation down to 7 V, with an output voltage of 5 V. The output voltage of the PTN78060H can
be as little as 3 V lower than the input, allowing operation down to 15 V, with an output voltage of 12 V.
The PTN78060 has undervoltage lockout, an integral on/off inhibit, and includes an output current limit and
overtemperature protection. It is well suited to a wide variety of general-purpose applications that operate off
12-V, 24-V, or 28-V DC power.

Features

· 3-A Output Current

· Wide-Input Voltage

(7 V to 36 V) / (15 V to 36 V)

·Wide-Output Voltage Adjust

(2.5 V to 12.6 V) / (11.85 V to 22 V)

· High Efficiency (Up to 96%)
· On/Off Inhibit
· Under-Voltage Lockout
· Output Current Limit
· Overtemperature Shutdown
· Operating Temperature: -40°C to 85°C
· Surface Mount Package Available
