Product Summary
The PC357N1J000F is a mini-flat Package, general purpose photocoupler. Collector-emitter voltage is 80V and CTR is 50% to 600% at input current of 5mA.
Parametrics
PC357N1J000F absolute maximum ratings: (1)Forward current: 50 mA; (2)Peak forward current: 1 A; (3)Reverse voltage: 6 V; (4)Power dissipation: 70 mW; (5)Collector-emitter voltage: 80 V; (6)Emitter-collector voltage: 6 V; (7)Collector current: 50 mA; (8)Collector power dissipation: 150 mW; (9)Total power dissipation: 170 mW; (10)Isolation voltage: 3.75 kV; (11)Operating temperature: -30 to 100 ℃; (12)Storage temperature: -40 to +125 ℃.
Features
PC357N1J000F features: (1)4-pin Mini-flat package; (2)Double transfer mold package (Ideal for Flow Soldering); (3)High collector-emitter voltage (VCEO : 80V); (4)Current transfer ratio (CTR) : MIN. 50% at IF=5mA, VCE=5V; (5)Several CTR ranks available; (6)High isolation voltage between input and output (Vis)(rms):3.75kV); (7)Lead-free and RoHS directive compliant.

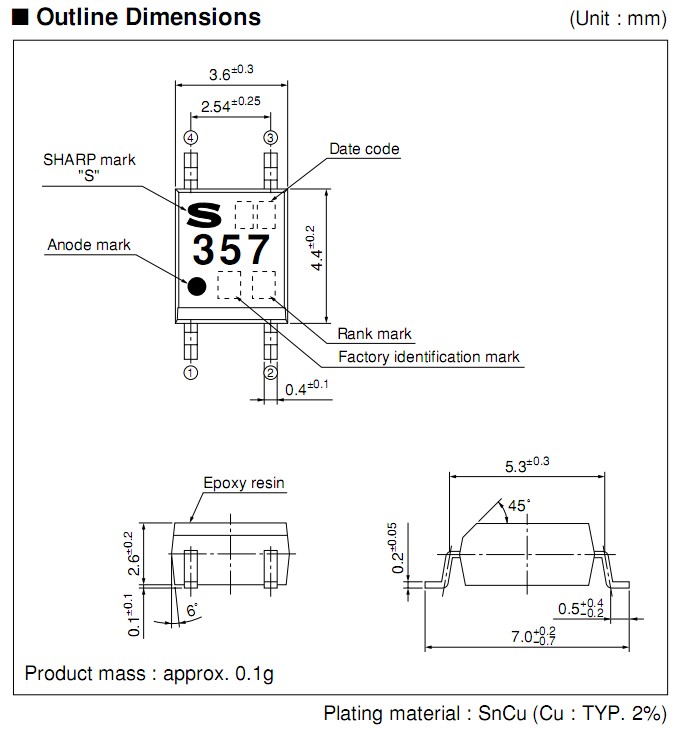

Diagrams
