Product Summary

The MB6S is a 0.5A glass passivated bridge rectifier.

Parametrics

MB6S absolute maximum ratings: (1)average rectifier current: 0.5A; (2)peak forward surge current: 35A; (3)total device dissipation: 1.4W; (4)thermal resistance, junction to ambient: 85℃/W; (5)storage temperature range: -55 to 150℃; (6)operating junction temperature: -55 to 150℃.

Features

MB6S features: (1)Low leakage; (2)Surge overload rating: 35 amperes peak; (3)Ideal for printed circuit board.

Diagrams

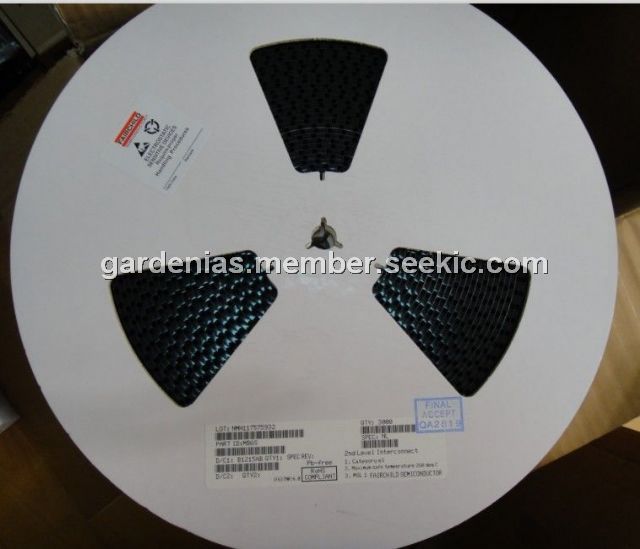

MB6S diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MB6S
MB6S
Fairchild Semiconductor
Bridge Rectifiers 0.5A Bridge
Data Sheet
0-1: $0.30
1-25: $0.20
25-100: $0.16
100-250: $0.13
MB6S_Q
MB6S_Q
Fairchild Semiconductor
Bridge Rectifiers 0.5A Bridge
Data Sheet
Negotiable
MB6S-E3/45
MB6S-E3/45
Vishay Semiconductors
Bridge Rectifiers 600 Volt 0.5 Amp 35 Amp IFSM
Data Sheet
0-1: $0.26
1-100: $0.19
100-500: $0.15
500-1000: $0.13
MB6S-E3/80
MB6S-E3/80
Vishay Semiconductors
Bridge Rectifiers 600 Volt 0.5 Amp 35 Amp IFSM
Data Sheet
0-1: $0.27
1-10: $0.23
10-100: $0.20
100-250: $0.18
MB6S-TP
MB6S-TP
Micro Commercial Components (MCC)
Bridge Rectifiers .5A 600V
Data Sheet
0-1: $0.35
1-25: $0.27
25-100: $0.23
100-500: $0.19
