Product Summary

The LPC2141FBD64 is a Single-chip 16-bit/32-bit microcontroller based on an ARM7TDMI-S CPU with real-time emulation and embedded trace support. The LPC2141FBD64 combines microcontroller with embedded high-speed flash memory ranging from 32 kB to 512 kB. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty.

Parametrics

LPC2141FBD64 absolute maximum ratings: (1)VDD, supply voltage: -0.5 to +3.6 V; (2)VDDA, analog supply voltage: -0.5 to 4.6 V; (3)Vi(VBAT), input voltage on pin VBAT for the RTC: -0.5 to 4.6 V; (4)Vi(VREF), input voltage on pin VREF: -0.5 to 4.6 V; (5)Via, analog input voltage: -0.5 to 5.1 V; (6)VI, input voltage 5 V tolerant I/O pins: -0.5 to 6.0 V; other I/O pins: -0.5 to VDD + 0.5V; (7)IDD, DC supply current: -100mA; (8)ISS, DC ground current: -100mA; (9)Tstg, storage temperature: -40 to 125℃; (10)Ptot(pack), package total power dissipation: 1.5 W.

Features

LPC2141FBD64 features: (1)16-bit/32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 package; (2)8 kB to 40 kB of on-chip static RAM and 32 kB to 512 kB of on-chip flash memory, 128-bit wide interface/accelerator enables high-speed 60 MHz operation; (3)In-System Programming/In-Application Programming (ISP/IAP) via on-chip boot loader software. Single flash sector or full chip erase in 400 ms and programming of 256 bytes in 1 ms; (4)EmbeddedICE RT and Embedded Trace interfaces offer real-time debugging with the on-chip RealMonitor software and high-speed tracing of instruction execution; (5)USB 2.0 Full-speed compliant device controller with 2 kB of endpoint RAM. In addition, the LPC2146/48 provides 8 kB of on-chip RAM accessible to USB by DMA; (6)One or two (LPC2141/42 vs. LPC2144/46/48) 10-bit ADCs provide a total of 6/14 analog inputs, with conversion times as low as 2.44 ms per channel; (7)Single 10-bit DAC provides variable analog output(LPC2142/44/46/48 only).; (8)Two 32-bit timers/external event counters (with four capture and four compare channels each), PWM unit (six outputs) and watchdog; (9)Low power Real-Time Clock (RTC) with independent power and 32 kHz clock input.

Diagrams

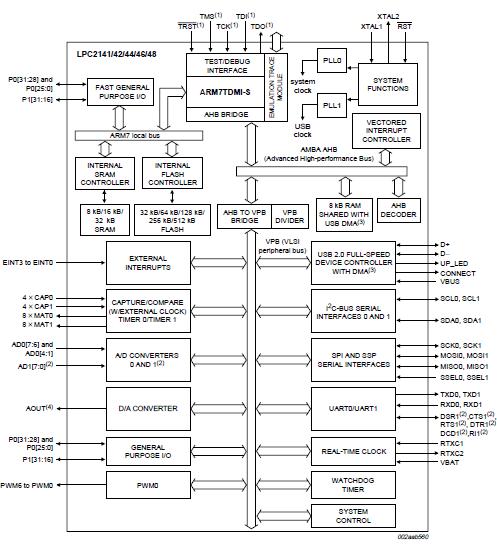

LPC2141FBD64 block diagram
