Product Summary

The LM324DR is a quadruple operational amplifier. It consists of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages.The low supply-current drain is independent of the magnitude of the supply voltage.

Parametrics

LM324DR absolute maximum ratings: (1)supply voltage: 16 to 32V; (2)Differential input voltage: 32V; (3)input voltage: -0.3 to 32V; (4)duration of output short circuit: unlimited; (5)package thermal impedance: 86℃/W.

Features

LM324DR features: (1)wide supply ranges; (2)low supply-current drain independent of supply voltage; (3)low input bias and offset parameters; (4)common-mode input voltage range.

Diagrams

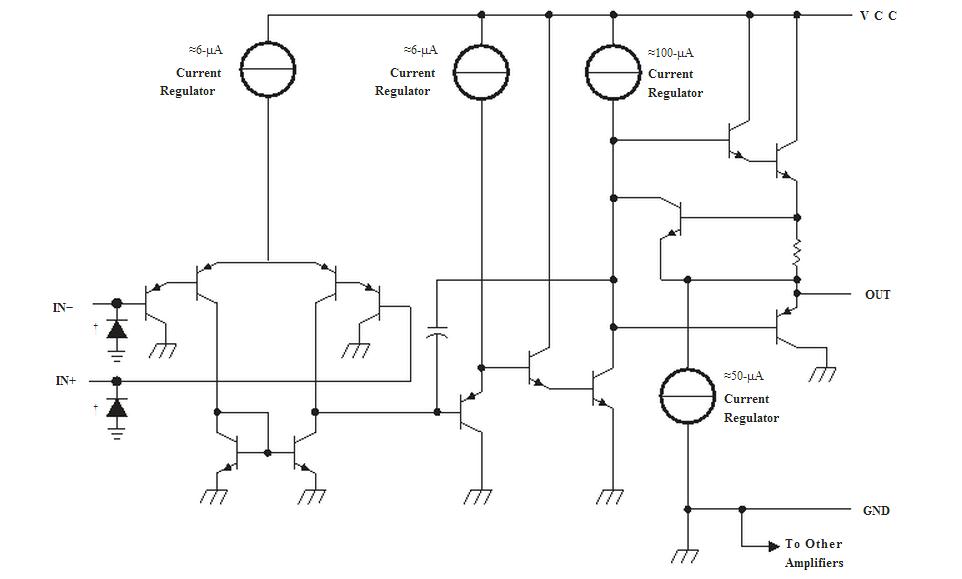

LM324DR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM324DR
LM324DR
Texas Instruments
Operational Amplifiers - Op Amps Quad GP Op Amp
Data Sheet
0-1: $0.23
1-25: $0.15
25-100: $0.12
100-250: $0.10
LM324DR2
LM324DR2
ON Semiconductor
Operational Amplifiers - Op Amps 3-32V Quad 5mV VIO
Data Sheet
Negotiable
LM324DR2G
LM324DR2G
ON Semiconductor
Operational Amplifiers - Op Amps 3-32V Quad 5mV VIO Commercial Temp
Data Sheet
0-1: $0.28
1-25: $0.19
25-100: $0.15
100-500: $0.10
LM324DRG4
LM324DRG4
Texas Instruments
Operational Amplifiers - Op Amps Quad General-Purpose Op Amp
Data Sheet
0-1: $0.23
1-25: $0.17
25-100: $0.14
100-250: $0.09
LM324DRG3
LM324DRG3
Texas Instruments
Operational Amplifiers - Op Amps Quadruple Op Amp
Data Sheet
0-1: $0.32
1-25: $0.19
25-100: $0.15
100-250: $0.11
LM324DRE4
LM324DRE4
Texas Instruments
Operational Amplifiers - Op Amps Quad General-Purpose Op Amp
Data Sheet
0-1: $0.23
1-25: $0.16
25-100: $0.12
100-250: $0.09
