Product Summary
The IKCS12F60B2A is a control integrated power system. It offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs The IKCS12F60B2A is designed to control AC motors in variable speed drives for applications like air conditioning, compressors and washing machines. The package concept is specially adapted to power applications, which need extremely good thermal conduction and electrical isolation, but also EMI-save control and overload protection. The features of Infineon TrenchStop IGBTs and antiparallel diodes are combined with a new optimized Infineon SOI gate driver for excellent electrical performance.
Parametrics
IKCS12F60B2A absolute maximum ratings: (1)Storage temperature range: -40 to 125℃; (2)operating temperature control: 125℃; (3)solder temperature: 260℃; (4)insulation test voltage: 2500V; (5)mounting torque: 0.6Nm.
Features
IKCS12F60B2A features: (1)Fully isolated Single In-Line molded module; (2)TrenchStop IGBTs with lowest VCE(sat); (3)Optimal adapted antiparallel diode for low EMI; (4)Integrated bootstrap diode and capacitor; (5)Rugged SOI gate driver technology with stability against transient and negative voltage; (6)Fully compliant to 3.3V and 5V microcontrollers; (7)Temperature sense; (8)Undervoltage lockout at all channels; (8)Matched propagation delay for all channels.

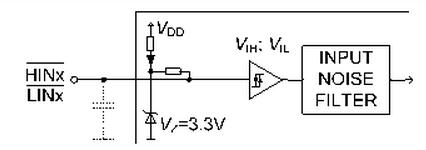

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

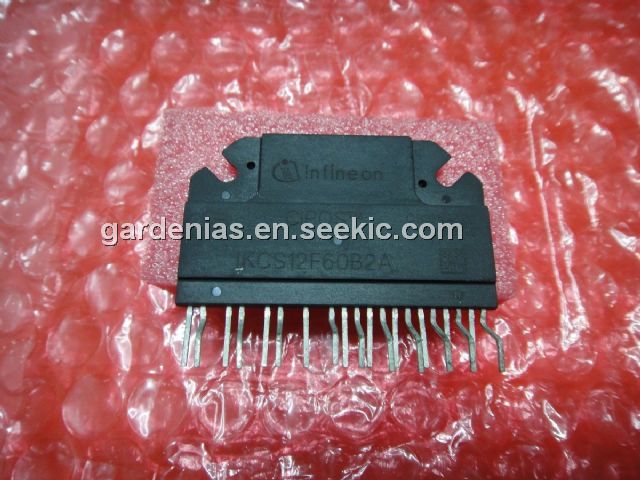

 IKCS12F60B2A |
Infineon Technologies |
Motor / Motion / Ignition Controllers & Drivers SNGL IN-LINE INTELLIGNT PWR MODUL |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
IKCS08F60B2A |
Infineon Technologies |
IGBT Modules SNGL IN-LINE INTELLIGNT PWR MODUL |
Data Sheet |
|
|
||||||||||||
|
IKCS08F60B2C |
Infineon Technologies |
IGBT Modules SNGL IN-LINE INTELLIGNT PWR MODUL |
Data Sheet |
|
|
||||||||||||
|
IKCS08F60F2A |
Infineon Technologies |
IGBT Modules SNGL IN-LINE INTELLIGNT PWR MODUL |
Data Sheet |
|
|
||||||||||||
|
IKCS12F60AA |
Infineon Technologies |
Motor / Motion / Ignition Controllers & Drivers CiPoS Single In-Line 600V 12A |
Data Sheet |
Negotiable |
|
||||||||||||
|
IKCS12F60B2A |
Infineon Technologies |
Motor / Motion / Ignition Controllers & Drivers SNGL IN-LINE INTELLIGNT PWR MODUL |
Data Sheet |
|
|
||||||||||||
|
IKCS12F60B2C |
Infineon Technologies |
Motor / Motion / Ignition Controllers & Drivers SNGL IN-LINE INTELLIGNT PWR MODUL |
Data Sheet |
|
|
||||||||||||
