Product Summary

The FEP16DT is a glass passivated super fast rectifier.

Parametrics

FEP16DT absolute maximum ratings: (1)average rectified current: 16A; (2)Peak forward surge current: 200A; (3)total device dissipation: 8.33W; (4)thermal resistance, junction to ambient: 15℃/W; (5)Thermal resistance, junction to lead: 2.2℃/W; (6)Storage temperature range: -65 to 150℃; (7)operating junction temperature: -65 to 150℃.

Features

FEP16DT features: (1)Low forward voltage drop; (2)High surge current capacity; (3)High current capability; (4)High reliability.

Diagrams

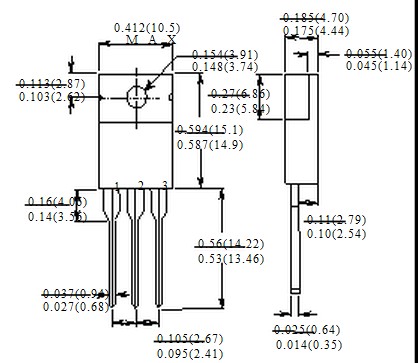

FEP16DT diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FEP16DT
FEP16DT
Fairchild Semiconductor
Rectifiers 16a Rectifier Ultra Fast Recovery
Data Sheet
0-1: $0.46
1-25: $0.44
25-100: $0.43
100-250: $0.25
FEP16DT/45
FEP16DT/45
Vishay Semiconductors
Rectifiers 16 Amp 200 Volt
Data Sheet
Negotiable
FEP16DTA
FEP16DTA
Fairchild Semiconductor
Rectifiers 16a Rectifier Ultra Fast Recovery
Data Sheet
0-1: $0.66
1-25: $0.57
25-100: $0.53
100-250: $0.46
FEP16DTD
FEP16DTD
Fairchild Semiconductor
Rectifiers 16a Rectifier Ultra Fast Recovery
Data Sheet
0-1: $0.65
1-25: $0.57
25-100: $0.53
100-250: $0.45
FEP16DTA_Q
FEP16DTA_Q
Fairchild Semiconductor
Rectifiers 16a Rectifier Ultra Fast Recovery
Data Sheet
Negotiable
FEP16DT_Q
FEP16DT_Q
Fairchild Semiconductor
Rectifiers 16a Rectifier Ultra Fast Recovery
Data Sheet
Negotiable
FEP16DT-E3/45
FEP16DT-E3/45
Vishay Semiconductors
Rectifiers 16 Amp 200 Volt
Data Sheet
0-1: $0.71
1-10: $0.61
10-100: $0.56
100-250: $0.50
FEP16DTHE3/45
FEP16DTHE3/45
Vishay Semiconductors
Rectifiers 200 Volt 16A 35ns Dual Common Cathode
Data Sheet
0-580: $0.56
580-1000: $0.53
1000-2000: $0.47
