Product Summary

The BAS316 is a high-speed switching diode fabricated in planar technology, and encapsulated in the SOD323 SMD plastic package. Its applications include high-speed switching in e.g. surface mounted circuits.

Parametrics

BAS316 absolute maximum ratings: (1)repetitive peak reverse voltage: 85V; (2)continuous reverse voltage: 75V; (3)Continuous forward current: 250mA; (4)repetitive peak forward current: 500mA; (5)non-repetitive peak forward current: 0.5A.

Features

BAS316 features: (1)Very small plastic SMD package; (2)High switching speed: max. 4 ns; (3)Continuous reverse voltage: max. 75 V; (4)Repetitive peak reverse voltage: max. 85 V; (5)Repetitive peak forward.

Diagrams

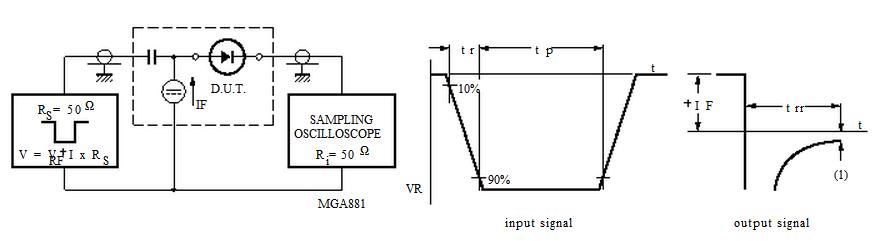

BAS316 diagram
