Product Summary
The 2N5064 is a thyristor. It is intended for use in general purpose switching and phase control applications. The 2N5064 is intended to be interfaced directly to microcontrollers, logic integreated circuits and other low power gate trigger circuits.
Parametrics
2N5064 absolute maximum ratings: (1)repetitive peak off-state voltages: 200V; (2)average on-state current: 0.51A; (3)RMS on-state current: 0.8A; (4)repetitive peak on-state current: 8A; (5)peak gate current: 1A; (6)peak gate power: 0.1W; (7)storage temperature: 150℃; (8)Operating junction temperature: -65 to 125℃.
Features
2N5064 features: (1)gate trigger current: 200μA; (2)latching current: 6mA; (3)holding current: 5mA; (4)on-state voltage: 1.7V; (5)gate trigger voltage: 0.8V.

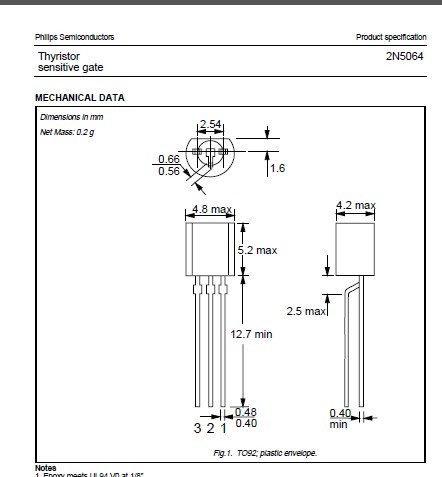

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2N5064 |
Central Semiconductor |
SCRs 0.8A 200V |
Data Sheet |
|
|
|||||||||||||
2N5064,112 |
NXP Semiconductors |
SCRs BULK SCR |
Data Sheet |
|
|
|||||||||||||
2N5064G |
ON Semiconductor |
SCRs THY 0.8A 200V SCR |
Data Sheet |
|
|
|||||||||||||
2N5064RLRA |
ON Semiconductor |
SCRs 200V 800mA Thyristor |
Data Sheet |
Negotiable |
|
|||||||||||||
2N5064RLRAG |
ON Semiconductor |
SCRs 200V 800mA Thyristor |
Data Sheet |
|
|
|||||||||||||
2N5064RLRM |
THYRISTOR SCR 0.8A 200V TO-92 |
Data Sheet |
Negotiable |
|
||||||||||||||
2N5064RLRMG |
ON Semiconductor |
SCRs 200V 800mA Thyristor |
Data Sheet |
|
|
|||||||||||||
2N5064RP |
Littelfuse |
SCRs 200V .8A 200uA Sensing |
Data Sheet |
Negotiable |
|
