TOP223YN

PWM switch, -0.3 to 700V, 100mA, TO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.10~1.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.10 / Piece
100 ~ 500 :	1.10 / Piece
500 ~ 6000 :	1.10 / Piece

PartNumber:: TOP223YN

Brand:: POWER-SEM Electronic （H.K）Co,.Ltd. - POWER-SEM | Pack: TO | D/C: 11+

Availability:: Supply Ability: 6000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Gardenias's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-27

From Other Seller

Part Number:TOP223YN
US $1.10 - 1.10
Quantity:

piece

Product Summary

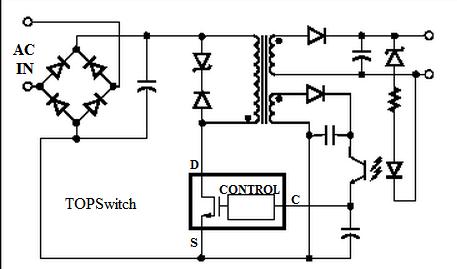

The TOP223YN is a three-terminal off-line PWM switch. The TOP223YN extends the power range from 100W to 150W fro 100/115/230VAC input and from 50W to 90W for 85-265 VAC universal input. The applications of the TOP223YN include TV, monitor, audio amplifiers, etc. Many significant circuit enhancements that reduce the sensitivity to board layout and line transients now make the design even esier.

Parametrics

TOP223YN absolute maximum ratings: (1)drain voltage: -0.3 to 700V; (2)control voltage: -0.3 to 9V; (3)control current: 100mA; (4)storage temperature: -65 to 125℃; (5)operating junction temperature: -40 to 150℃; (6)lead temperature: 260℃; (7)thermal impedance: 70℃/W.

Features

TOP223YN features: (1)Lowest cost, lowest component count switcher solution; (2)Cost competitive with linears above 5W; (3)Very low AC/DC losses – up to 90% efficiency; (4)Built-in Auto-restart and Current limiting; (5)Latching Thermal shutdown for system level protection; (6)Implements Flyback, Forward, Boost or Buck topology; (7)Works with primary or opto feedback; (8)Stable in discontinuous or continuous conduction mode; (9)Source connected tab for low EMI; (10)Circuit simplicity and Design Tools reduce time to market.
