Product Summary
The SMBJ5347B is a 5W surface mount silicon zener diode.
Parametrics
SMBJ5347B absolute maximum ratings: (1)forward voltage at 1A current: 1.2V; (2)steady state power dissipation: 5W; (3)operating and storage temperature: -55 to 150℃; (4)thermal resistance: 25℃/W.
Features

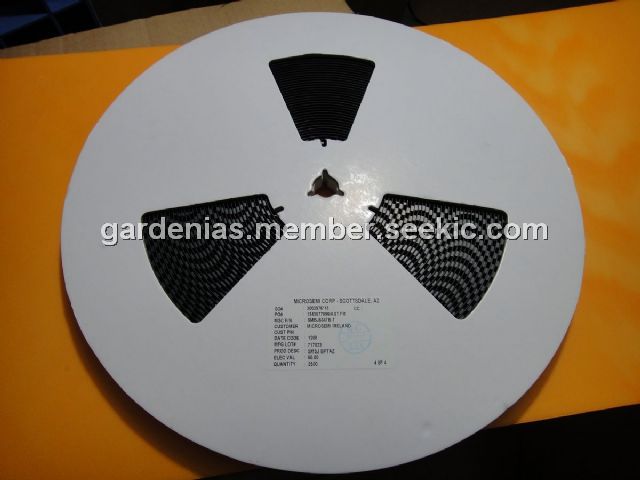

SMBJ5347B features: (1)Low profile package for surface mounting (flat handling surface for accurate placement); (2)Zener Voltage 3.3V to 200V; (3)High Surge Current Capability; (4)For available tolerances – see note 1; (5)Available on Tape and Reel (see EIA std RS-481).
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SMBJ5347B |
Other |
Data Sheet |
Negotiable |
|
||||||||||||
SMBJ5347B-TP |
Micro Commercial Components (MCC) |
Zener Diodes 5W 10V |
Data Sheet |
|
|
