Product Summary

The SKM150GB128DE is an SPT IGBT module. Its applications include AC inverter drives, UPS, electronic welders at fsw up to 20kHz.

Parametrics

SKM150GB128DE absolute maximum ratings: (1)VCES: 1200V; (2)IC: 200A; (3)ICRM: 400A; (4)VGES: 20V; (5)Tvj: -40 to 150℃; (6)Visol: 4000V.

Features

SKM150GB128DE features: (1)Homogeneous Si; (2)SPT technology; (3)VCEsat with positive temperature coefficient; (4)High short circuit capability, self limiting to 6xIC.

Diagrams

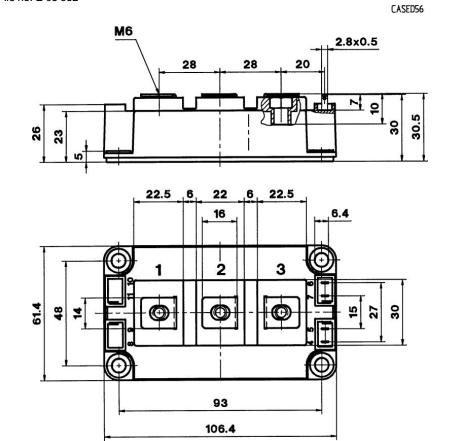

SKM150GB128DE dimensions
