Product Summary

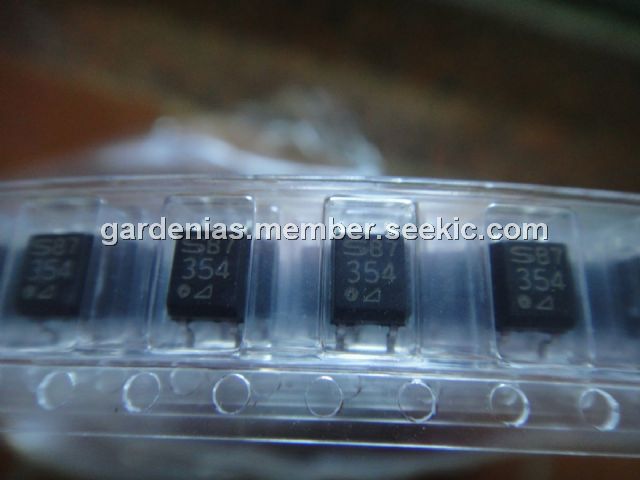

The PC354N1 is a mini-flat package, AC input type photocoupler. Its applications include hybrid substrates that require high density mounting, programmable controllers.
Parametrics
PC354N1 absolute maximum ratings: (1)forward current: ±50mA; (2)peak forward current: 1A; (3)power dissipation: 70mW; (4)collector-emitter voltage: 35V; (5)emitter-collector voltage: 6V; (6)collector current: 50mA; (7)collector power dissipation: 150mW; (8)total power dissipation: 170mW.
Features
PC354N1 features: (1)AC input; (2)opaque type, mini-flat package; (3)subminiature type; (4)isolation voltage between input and output.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PC354N1 |
|
PHOTOCOUPLER AC INPUT 4-SMD |
Data Sheet |
Negotiable |
|
||||||||||||||
 |
PC354N1J000F |
Sharp Microelectronics |
Transistor Output Optocouplers 50-150% CTR rank of PC354NJ0000F |
Data Sheet |
|
|
||||||||||||||
|
PC354N1TJ00F |
Sharp Microelectronics |
Transistor Output Optocouplers 50-150% CTR rank of PC354NTJ000F |
Data Sheet |
|
|
||||||||||||||
