Product Summary

The OP27 precision operational amplifier combines the low offset and drift of the OP07 with both high speed and low noise. Offsets down to 25 μV and maximum drift of 0.6 μV/°C make the OP27 ideal for precision instrumentation applications. Exceptionally low noise, en = 3.5 nV/√Hz, at 10 Hz, a low 1/f noise corner frequency of 2.7 Hz, and high gain (1.8 million), allow accurate high-gain amplification of low-level signals. A gain-bandwidth product of 8 MHz and a 2.8 V/μs slew rate provide excellent dynamic accuracy in high speed, data-acquisition systems.
A low input bias current of ±10 nA is achieved by use of a bias current cancellation circuit. Over the military temperature range, this circuit typically holds IB and IOS to ±20 nA and 15 nA, respectively.
The output stage has good load driving capability. A guaranteed swing of ±10 V into 600 Ω and low output distortion make the

Features

FEATURES
Low noise: 80 nV p-p (0.1 Hz to 10 Hz), 3 nV/√Hz
Low drift: 0.2 μV/°C
High speed: 2.8 V/μs slew rate, 8 MHz gain bandwidth
Low VOS: 10 μV
Excellent CMRR: 126 dB at VCM of ±11 V
High open-loop gain: 1.8 million
Fits OP07, 5534A sockets
Available in die form

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

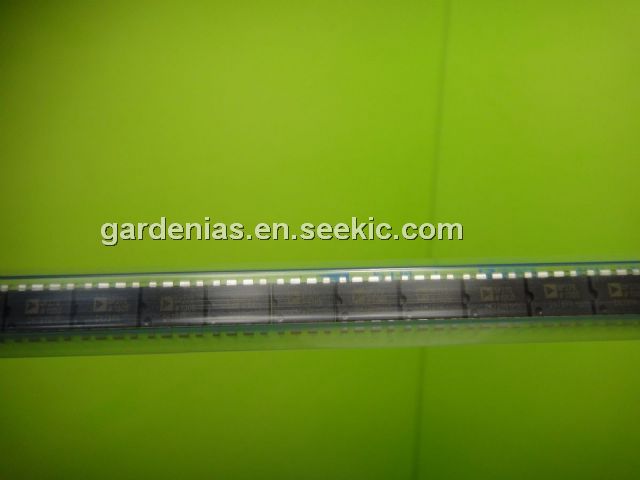

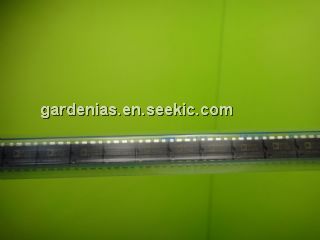

OP27GPZ
OP27GPZ

IC OPAMP GP 8MHZ LN PREC 8DIP
Data Sheet
0-1: $1.87
1-10: $1.67
10-25: $1.51
25-100: $1.37
100-250: $1.24
250-500: $1.11
500-1000: $0.94
1000-2500: $0.89
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OP27
OP27
Other

Data Sheet
Negotiable
OP270
OP270
Optek
Infrared Emitters SMD Axial
Data Sheet
Negotiable
OP270EJ8
OP270EJ8
Linear Technology
IC OPAMP PREC DUAL LN 8-CDIP
Data Sheet
Negotiable
OP270EZ
OP270EZ

IC OPAMP GP 5MHZ DUAL PREC 8CDIP
Data Sheet
0-1: $9.31
1-10: $8.47
10-100: $7.20
100-250: $6.56
250-500: $6.14
500-1000: $5.64
OP270FZ
OP270FZ

IC OPAMP GP 5MHZ DUAL PREC 8CDIP
Data Sheet
0-1: $6.98
1-10: $6.35
10-100: $5.40
100-250: $4.92
250-500: $4.60
500-1000: $4.23
OP270GN8
OP270GN8

IC PREC OPAMP LO NOIS DUAL 8DIP
Data Sheet
0-2100: $2.04
