Product Summary
The MCP130T-300I/TT is a microcontroller supervisory circuit. The Microchip Technology Inc. MCP120/130 is a voltage supervisory device designed to keep a microcontroller in reset until the system voltage has reached the proper level and stabilized. The MCP130T-300I/TT also operates as protection from brown-out conditions when the supply voltage drops below a safe operating level. Both devices are available with a choice of seven different trip voltages and both have open drain outputs. The MCP130 has an internal 5 kΩ pullup resistor. Both devices have active low RESET pins. The MCP120/130 will assert the RESET signal whenever the voltage on the VDD pin is below the trip-point voltage.
Parametrics
MCP130T-300I/TT absolute maximum ratings: (1)VDD: 7V; (2)all inputs and outputs: -0.6 to VDD+1V; (3)Storage temperature: -65 to 150℃; (4)ambient temperature with power applied: -65 to 125℃; (5)ESD protection on all pins: 2kV.
Features
MCP130T-300I/TT features: (1)holds microcontroller in reset until supply voltage reaches stable operating level; (2)resets microcontroller during power loss; (3)precision monitoring of 3V, 3.3V and 5V systems; (4)7 voltage trip points available; (8)open drain output.

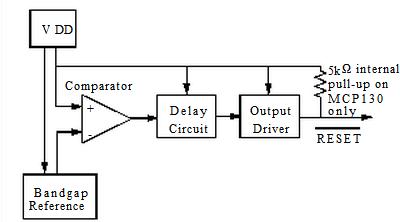

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MCP130T-300I/TT |
Microchip Technology |
Supervisory Circuits w/5K Pull-Up Low |
Data Sheet |
|
|
|||||||||||||
