Product Summary
The MC56F8013VFAE is a 16-bit digital signal controller. The core is based on a dual Harvard-style architecture consisting of three execution units operating in parallel, allowing as many as six operations per instruction cycle. The MCU-style programming model and optimized instruction set allow straightforward generation of efficient, compact DSP and control code. The MC56F8013VFAE is also highly efficient for C compilers to enable rapid development of optimized control applications.
Features
MC56F8013VFAE features: (1)one 16-bit quad timer; (2)one inter-integrated circuit; (3)computer operating properly/watchdog; (4)on-chip relaxation oscillator; (5)integrated power-on reset and low-voltage interrupt module; (6)up to 26GPIO lines; (7)32-pin LQFP package.

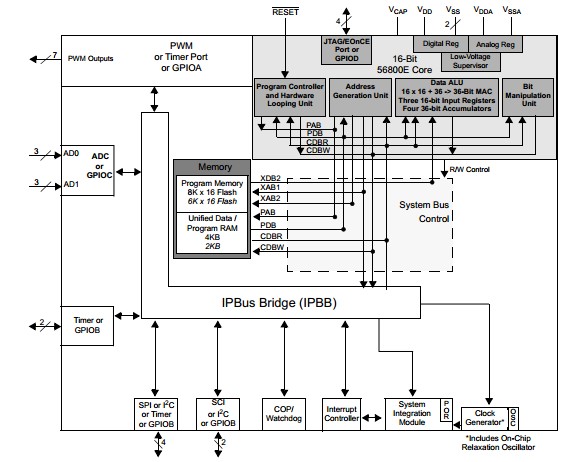

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC56F8013VFAE |
Freescale Semiconductor |
Digital Signal Processors & Controllers (DSP, DSC) 16 BIT DSPHC ANGUILLA |
Data Sheet |
|
|
||||||||||||
|
MC56F8013VFAER2 |
Freescale Semiconductor |
Digital Signal Processors & Controllers (DSP, DSC) 16 BIT DSPHC ANGUILLA |
Data Sheet |
|
|
||||||||||||
