Product Summary

The JQ1aP-12V-F is a high electrical and mechanical noise immunity relay. Its applications include air conditioners, refrigerators, microwave ovens, heaters.

Parametrics

JQ1aP-12V-F absolute maximum ratings: (1)initial contact resistance: 100mΩ; (2)max. operating speed: 20cpm; (3)contact and coil: 8000V; (4)max. switching voltage: 250VAC; (5)Max. switching current: 5A.

Features

JQ1aP-12V-F features: (1)High electrical noise immunity; (2)High switching capacity in a compact package; (3)High sensitivity: 200 mW (1a), 400 mW (1c); (4)High surge voltage: 8,000 V between contacts and coil; (5)UL, CSA, VDE, TüV, SEMKO approved; (5)Class B coil insulation type available.

Diagrams

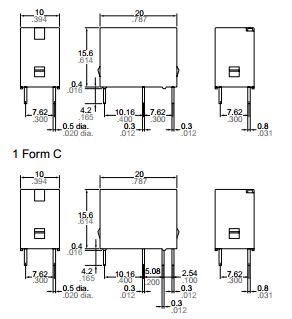

JQ1aP-12V-F dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
JQ1AP-12V-F
JQ1AP-12V-F

Panasonic Electric Works

General Purpose / Industrial Relays 10A 12VDC SPST-NO HIGH CAP

Data Sheet

0-1: $2.14
1-25: $1.96
25-50: $1.75
50-100: $1.69
